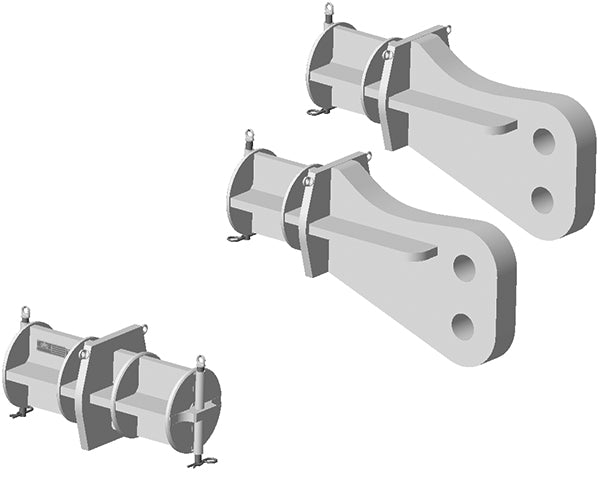

SPREADER BEAM HD END CAP - PAIR MIN TOP RIGGING ANGLE 45 DEG (22525)

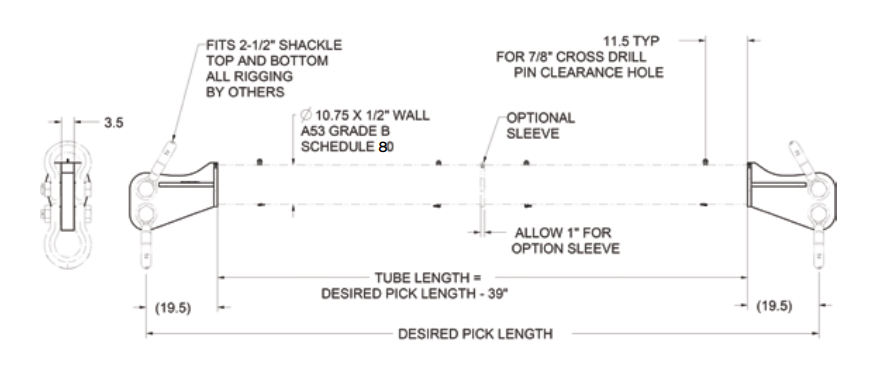

• Manufactured to exceed all ASME B30.20 and OSHA regulations. when assembled to specifications using A53 Grade B Schedule 80 pipe.
• Painted safety yellow for increased visibility.
• ALL End Caps shipped with proof load certification paperwork.
• Durable construction ideally suited to jobsite or warehouse use.
• Made in U.S.A.
• Top rigging available - call for details.
• ALL lifting equipment individually proof loaded per OSHA requirements.
• Minimum horizontal top rigging angle of 45° - M&W recommends a minimum angle of 60°. Outside Spread in Feet *** 45 or 60 degree top rigging 6' - 160,000 lbs 8' - 160,000 lbs 10' - 160,000 lbs 15' - 160,000 lbs 20' - 160,000 lbs 25' - 160,000 lbs 30' - 160,000 lbs 35' - 150,000 lbs 40' - 100,000 lbs
