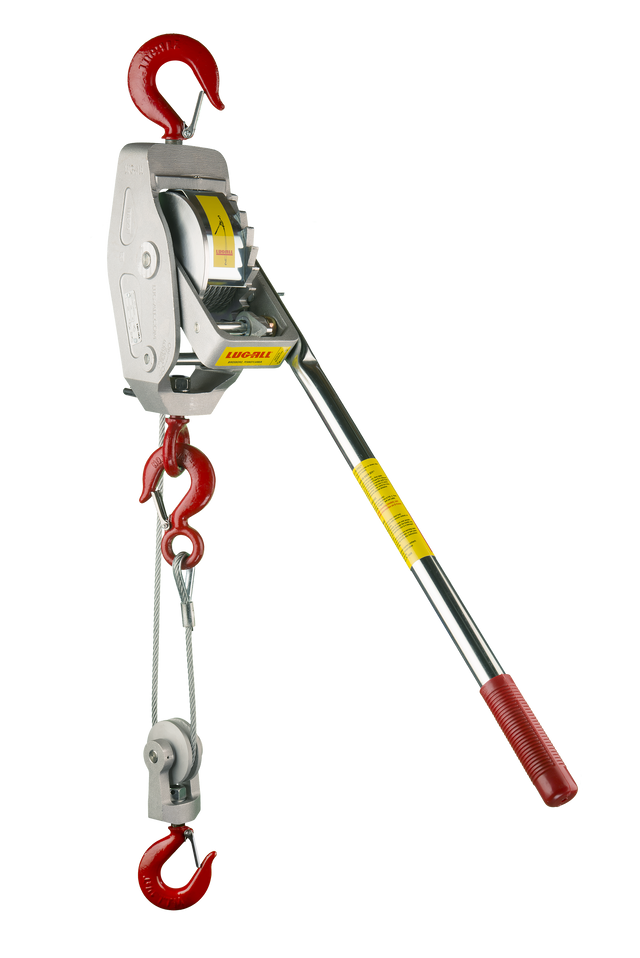

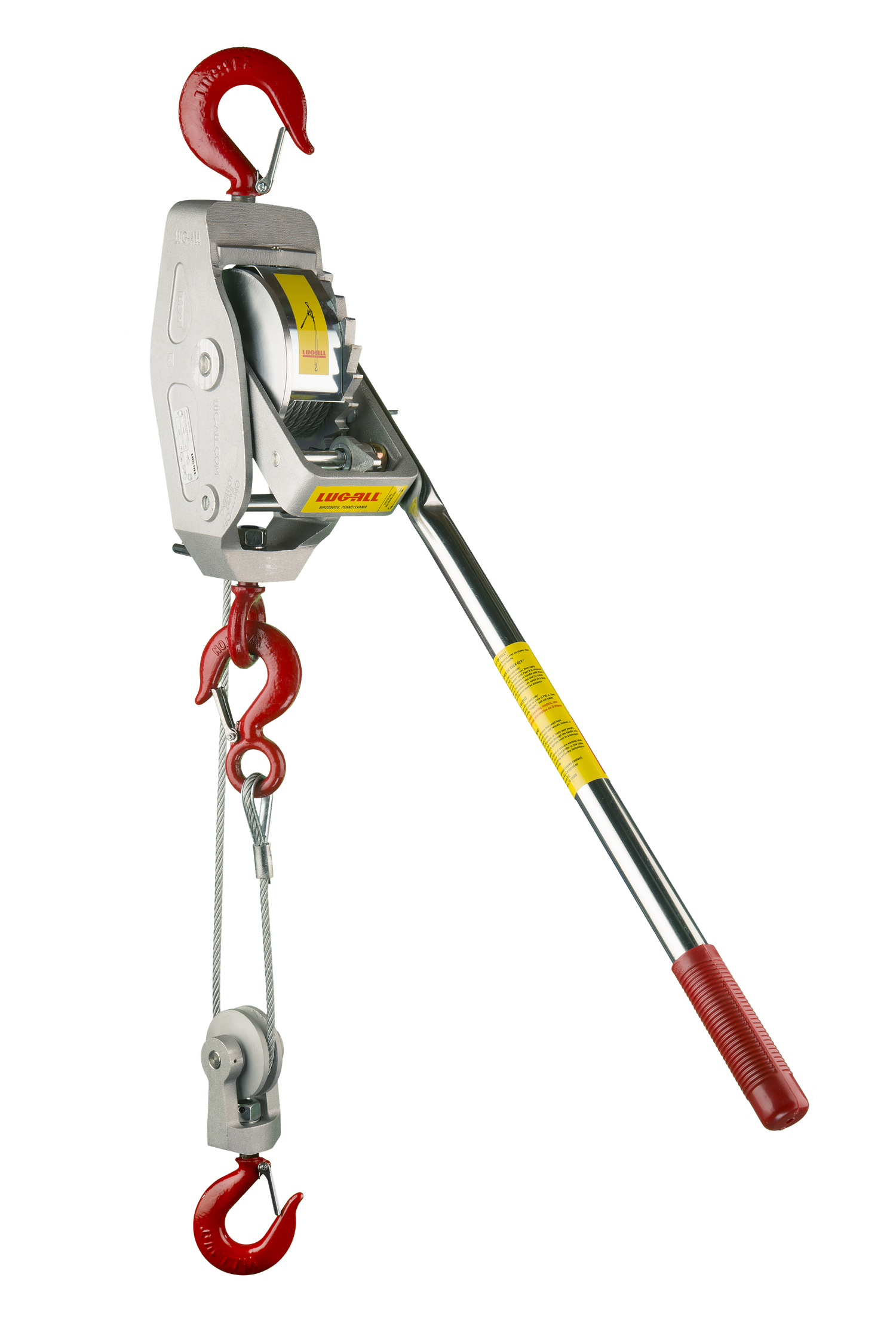

Lug-All 3/4 ton X 30' ton Medium Frame Cable Hoist (3000-30)

The Lug-All model 3000-30 is an industrial-grade 1-1/2-ton cable hoist featuring double or single line lift capabilities. When used as a single line hoist, this model has 30 feet of cable and a 1,500-pound capacity. As a double line hoist, this model has 15 feet of cable and a 3,000-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.

Double Line Capacity: 1-1/2 tons
Double Line Max Handle Pull: 134 lbs
Double Line Lift Distance: 15'
Double Line Lift Distance: 15'
Double Line Minimum Distance: 23-1/2"
Single Line Capacity: 3/4 tons
Single Line Max Handle Pull: 134 lbs
Single Line Lift Distance: 30'
Single Line Minimum Distance: 18"
Cable Diameter: 7/32"
Cable Length: 31'-6"
