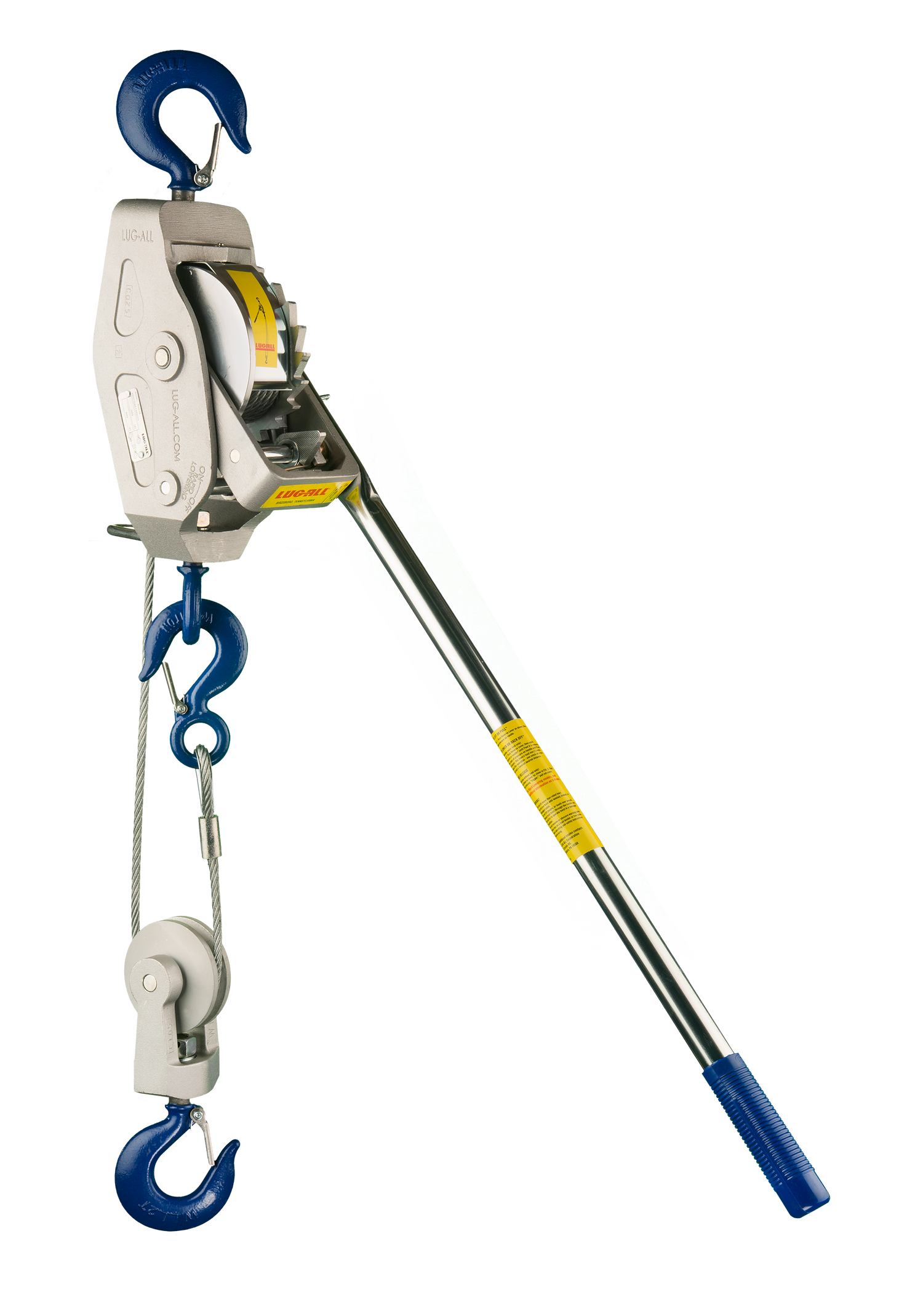

Lug-All 1 ton X 20' ton Medium Frame Cable Hoist (4000-20)

The Lug-All model 4000-20 is an industrial-grade 2-ton cable hoist featuring double or single line lift capabilities. When used as a single line hoist, this model has 20 feet of cable and a 2,000-pound capacity. As a double line hoist, this model has 10 feet of cable and a 4,000-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.

Double Line Capacity: 2 tons
Double Line Max Handle Pull: 140 lbs
Double Line Lift Distance: 10'
Double Line Lift Distance: 10'
Double Line Minimum Distance: 23-1/2"
Single Line Capacity: 1 tons
Single Line Max Handle Pull: 140 lbs
Single Line Lift Distance: 20'
Single Line Minimum Distance: 18-1/2"
Cable Diameter: 1/4"
Cable Length: 22'
