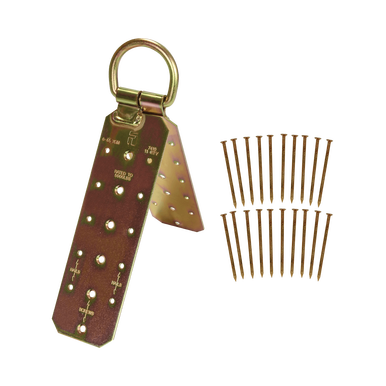

Hinged Reusable Roof Anchor (PN 7410)

Features

• Features 10" x 3" anchoring plates with 2-1/4" connecting D-ring
• Hinged design conforms to flat or sloped roofs up to 12/12 pitch.
• Includes 16D nails for roof ridge or field installation
• For temporary reusable installation on wood structures
• Meets OSHA 1926.502 regulations


Material Specifications

• Plates: Plated alloy steel
  D-ring: Plated alloy steel; 5,000 lb min. static strength

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
