by Actek

Forged Hoist Ring 2,500 lbs WLL (68070)

Name: Forged Hoist Ring 2,500 lbs WLL (68070)
Brand: Actek
SKU: AK-68070
Price: 23.07 USD
Availability: InStock

$23.07 - $23.07

$23.07

$23.07 - $23.07

$23.07

PN: AK-68070

MPN: 68070

Manufacturer: ACTEK® Manufacturing & Engineering

Part Number: 68070

Description: Forged Hoist Ring

Rated Load: 2,500 lbs

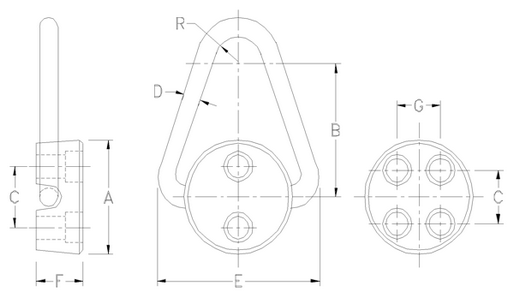

A: 2 1/4 in

B: 2 1/2 in

C: 1 1/8 in

D: 3/8 in

E: 3 3/16 in

F: 7/8 in

G: N/A

R: 5/8 in

Torque: 7 - 10 ft-lbs

Weight: 1.25 lbs

Pivot Angle: 180°

Safety Factor: 5:1

Material: Alloy Steel

Finish: Black Oxide

Inspected: Magnetic Particle Inspected

Heat Treat: Certified Heat Treatment

Note: Screws not included

Inch Screw x Length (P/N): 3/8"-16 x 1-1/4 (46146-FF)

Metric Screw x Length (P/N): M10 x 1.50 x 35 (49146-FF)
