by Falltech

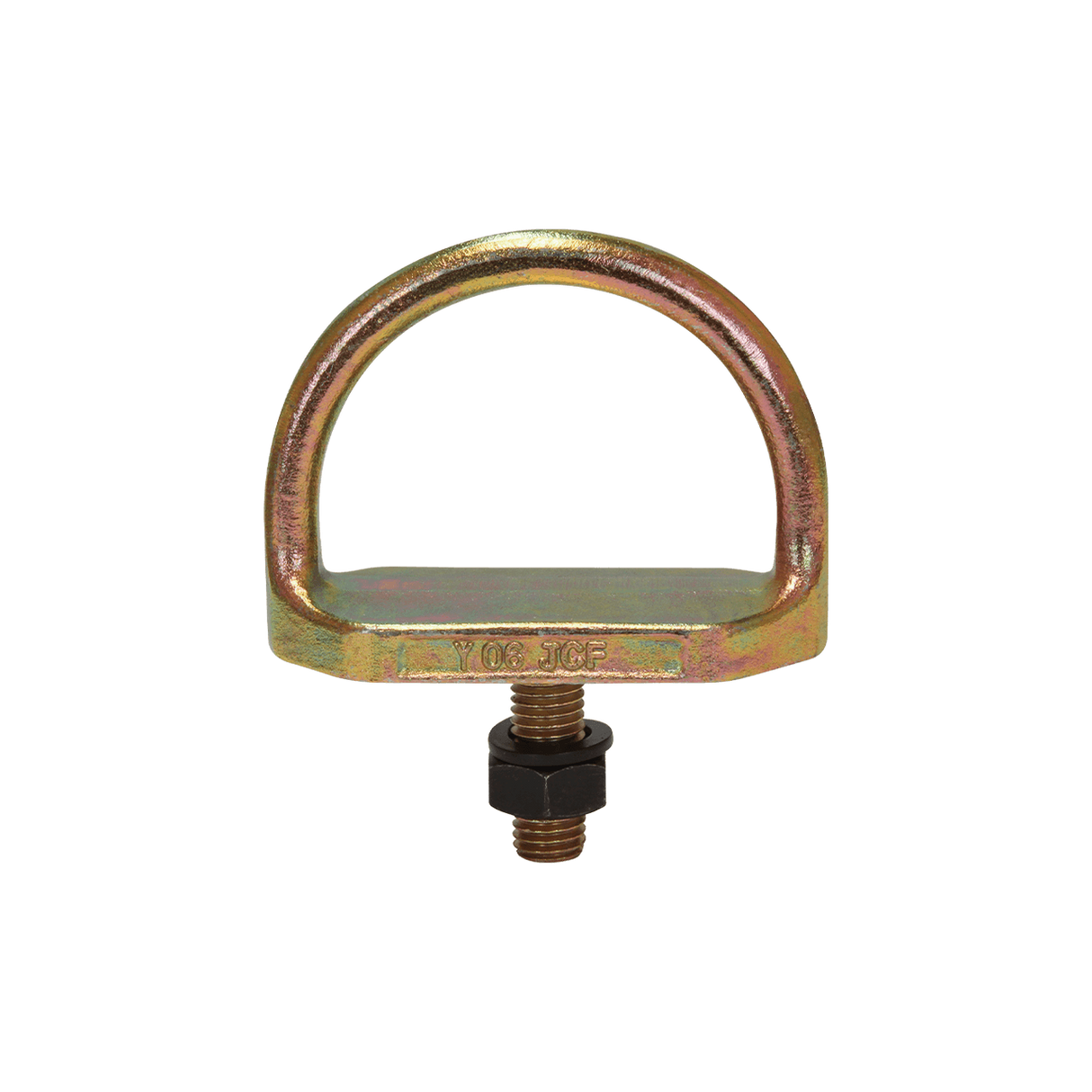

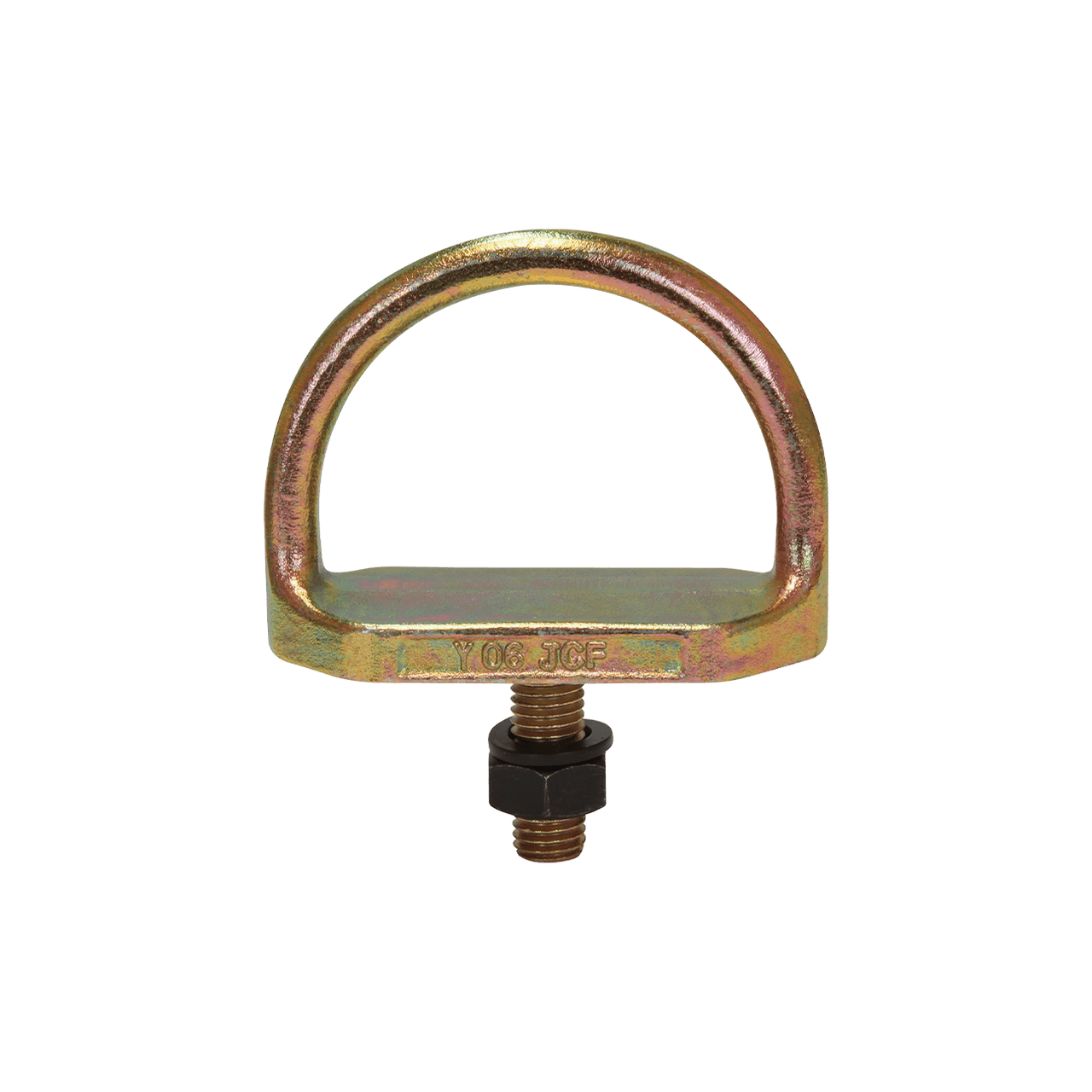

Bolt-on D-ring Anchor with Stud and Nut (7435)
Original price
$61.86
-
Original price
$61.86
Original price
$61.86
$61.86
-
$61.86
Current price
$61.86
Features
- Features large 2-1/4" x 3-1/4" internal dimension for easy connection
- Solid one-piece forged construction with threaded stud and Grade 8 nut.
- For permanent installation to steel structures with 7/8" max. thickness
- Complies with ANSI Z359.18-2017
Material Specifications
- Bolt-on Anchor: Plated alloy steel
Performance Specifications
- Static Strength: 5,000 lb min.
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 425 lb max.
Compliant With:
OSHA 1926.502 and 1910.6
