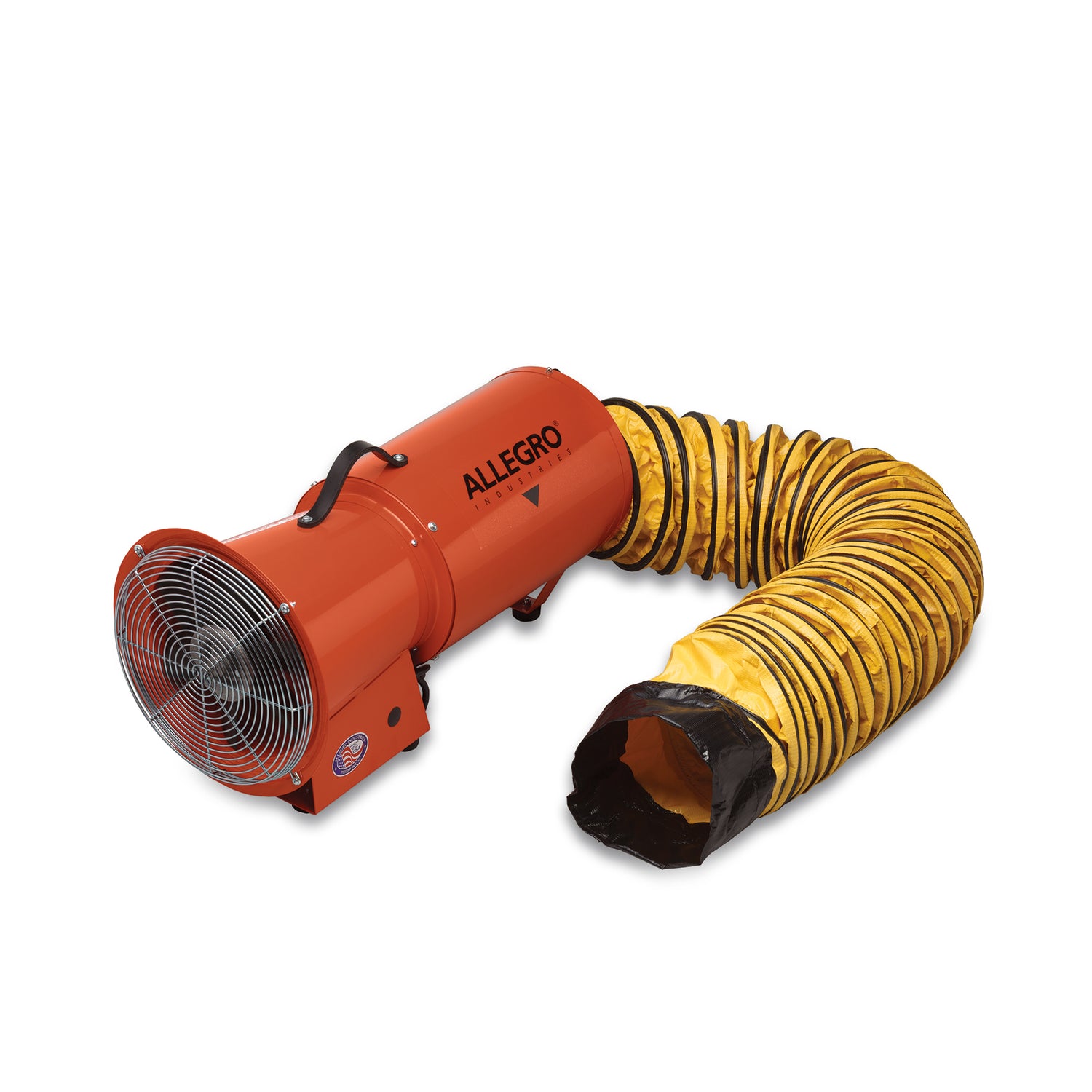

8" Axial AC Blower w/ Canister and 25’ Ducting, 46 lbs. (9514-25)

Engineered for convenience, this 8î axial blower is an all-in-one ventilation system. The design allows ducting to collapse into a built-in canister for easy storage. The unit can also be stored vertically to use a minimum amount of space. Includes blower, built-in storage canister and 15 or 25 feet of ducting. Certified to CSA STD C22.2 No 113. Air delivery certified CEESI.

1/3 HP
Available in both US and International wiring configurations
Available as blower only or complete unit with 15’ (4.57 m) or 25’ (7.62 m) of ducting and storage
Certified to CSA Standard C22.2 No 113.
Epoxy powder-coated in "safety orange"
18-gauge cold rolled steel housing
14-gauge steel enclosed panel
Welded motor mount construction
3-ply rubber handle
Made in USA
Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
Yellow, retractable, non-collapsible single-ply ducting is PVC coated vinyl and polyester materials, temp. resistant up to 180° F (82.2° C)


Power Tools Amps: N/A
PPE Standards: N/A
Blower Motor HP: 1/3
Blower CFM: 1275
Blower M3 per Hour: 2166
Blower M3 per Min: 36
Blower CFM 1 Bend Duct: 661
Blower M3 per Hour 1 Bend Duct: 1123
Blower CFM 2 Bend Duct: 582
Blower M3 per Hour 2 Bend Duct: 989
Blower Electrical Current: 120V AC, 60 Hz
Blower Duct: 25'/7.6m
Blower Configuration: AC
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: No
Blower Respiratory EU 220V: No
Outdoor Rated: N/A
Port Size: N/A
