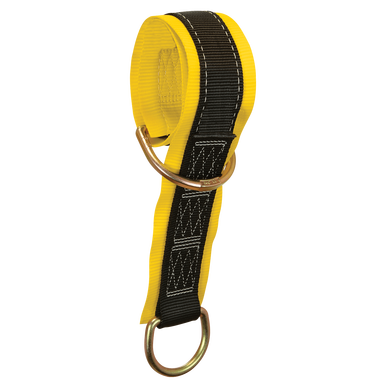

3' Pass-Through Sling Anchor (PN 7336)

Features

• Features 1-3/4" load-bearing web with 3" wide full-length wear pad for abrasion resistance
• Appropriately sized alloy steel D-rings provide simple pass-through choke-on installation.
• May be passed-through multiple times to shorten length
• Smaller D-ring facilitates connection point for SRLs and lanyards
• Each D-ring termination features three individual 2" box-stitches for longer life
• Complies with ANSI Z359.18-2017


Material Specifications

• Webbing: Polyester; 5,000 lb min. static strength


• D-rings: Plated alloy steel; 5,000 lb min. static strength


• Wear Pad: 3" Polyester webbing

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
