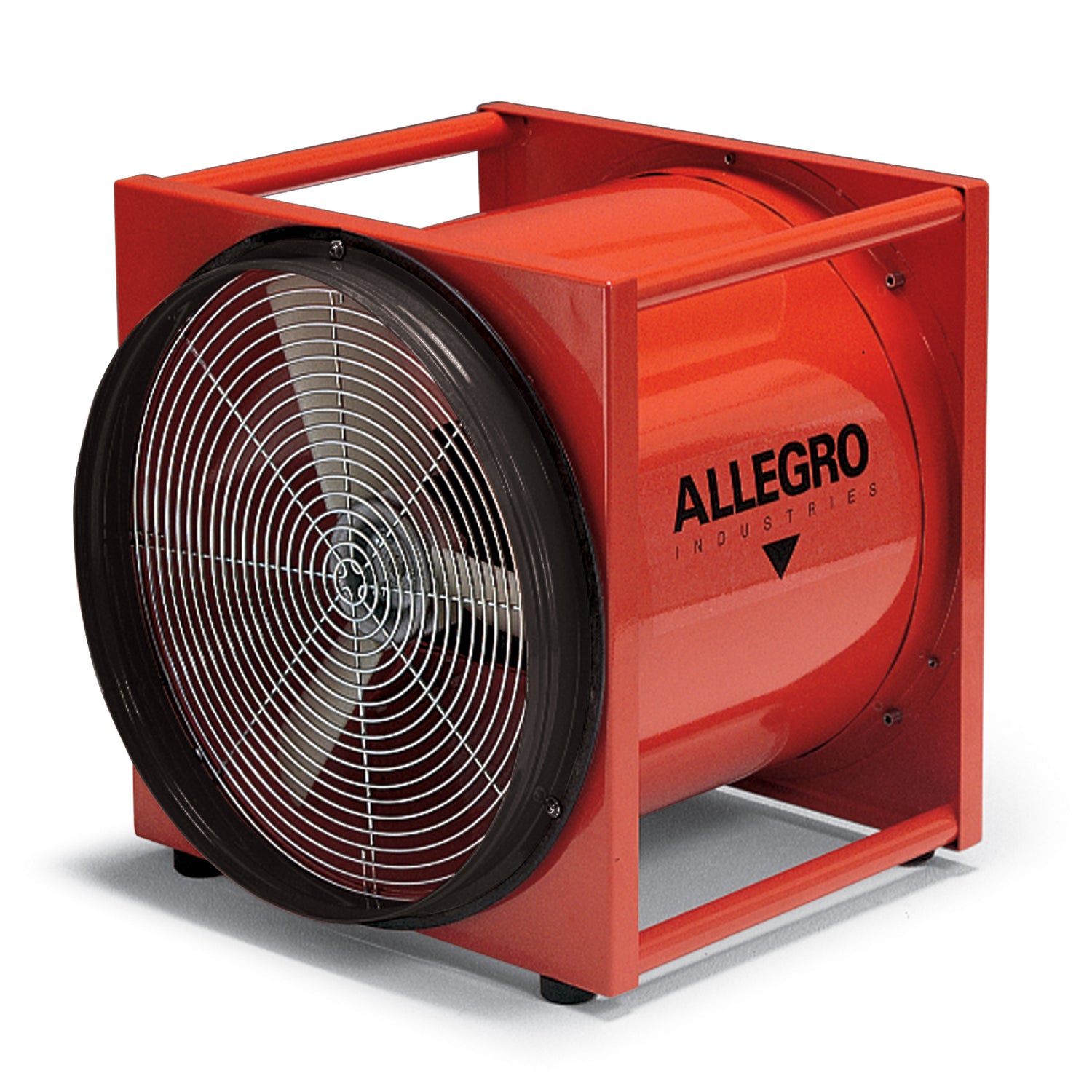

26″ Axial AC Standard Metal Blower (9530)

Designed for applications requiring a maximum amount of output as this 26" Axial Standard Metal Blower offers the highest output of any of our ventilation blowers. Housing is made from 16-gauge cold rolled steel and powder-coated in a "safety orange" color that holds a three-blade impeller. It features an interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport, a steel/zinc plated grill and 4 rubber feet.

2 HP
115V-230V AC, 60 Hz
Thermally protected motor
Epoxy powder-coated in "safety orange"
16-gauge cold rolled steel housing
Integrated carrying handles
Steel/chrome plated grill
Glass reinforced polypropylene (PPG) three blade fan with aluminum hub
Made in USA
Interchangeable flange




Power Tools Amps: N/A
PPE Standards: N/A
Blower Motor HP: 2
Blower CFM: 9570
Blower M3 per Hour: 16259
Blower M3 per Min: 271
Blower CFM 1 Bend Duct: 8610
Blower M3 per Hour 1 Bend Duct: 14628
Blower CFM 2 Bend Duct: 7750
Blower M3 per Hour 2 Bend Duct: 13167
Blower Electrical Current: 115V AC, 60 Hz
Blower Duct: Not Included
Blower Configuration: AC
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: No
Blower Respiratory EU 220V: No
Outdoor Rated: N/A
Port Size: N/A
