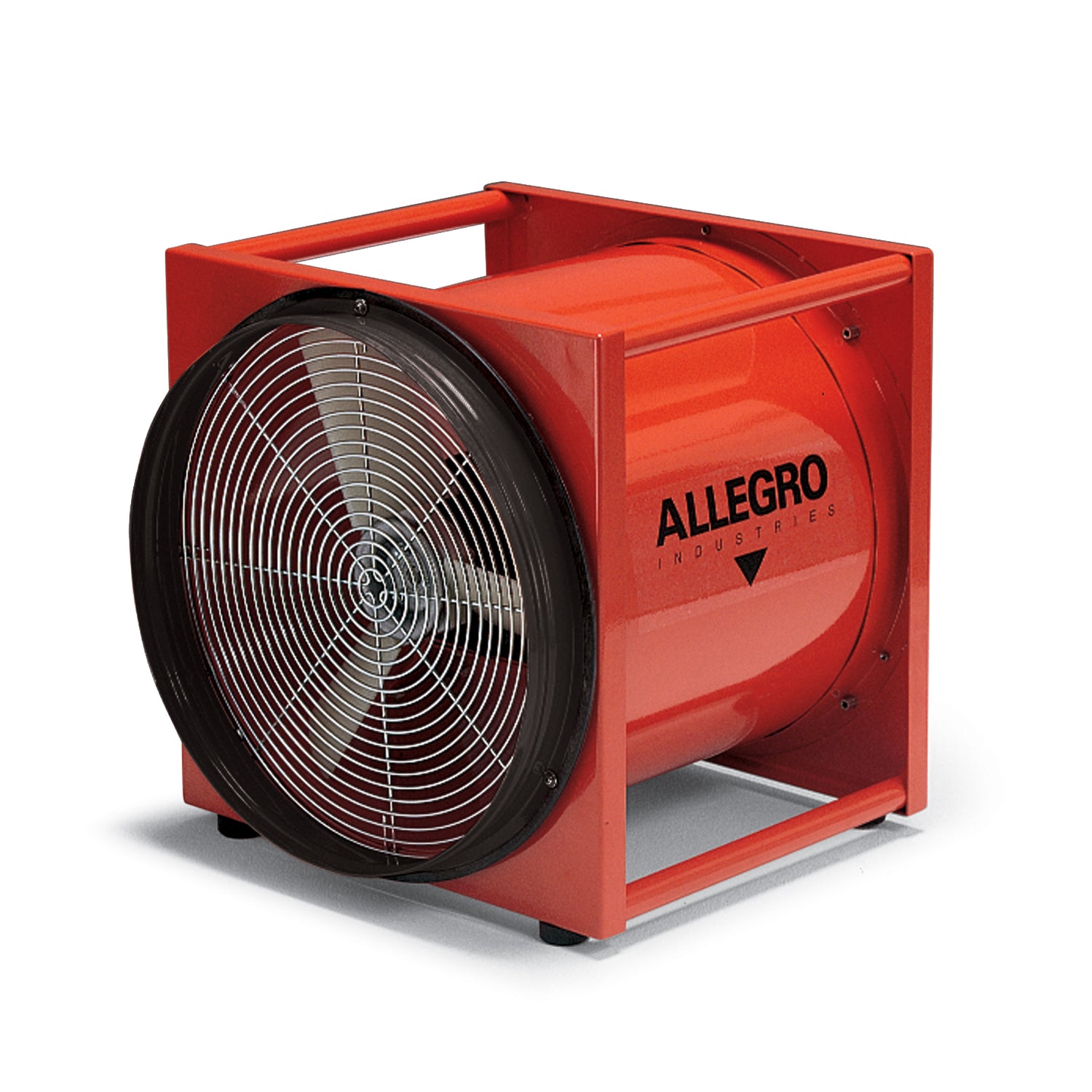

20″ Axial Explosion-Proof (EX) Metal Blower (220V AC/50 Hz). Does NOT meet CSA C22.2 No. 113 requirements. (9525-01E)

Designed for use in applications requiring a large amount of output in a†hazardous location environment. Our 20î Axial Explosion-Proof Metal Blower is offered with a Ω hp single-phase motor and an efficient three-blade impeller fan in a rugged metal housing. Also included is a NEMA rated 115V plug to be used with an explosion-proof socket (sold separately). Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G. UL Listed. Certified to CSA†Standard C22.2 No.113. NOTE: Explosion-proof blowers require an explosion-proof socket.

1/2 HP
Available in US and International wiring configurations
Certified to CSA Standard C22.2 No 113.
Epoxy powder-coated in "safety orange"
16-gauge cold rolled steel housing
Integrated carrying handles
Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G.
Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub
Made in USA
Interchangeable flange




Power Tools Amps: 3.6 A
PPE Standards: N/A
Blower Motor HP: 1/2
Blower CFM: 4650
Blower M3 per Hour: 7900
Blower M3 per Min: 132
Blower CFM 1 Bend Duct: 3150
Blower M3 per Hour 1 Bend Duct: 5352
Blower CFM 2 Bend Duct: 2950
Blower M3 per Hour 2 Bend Duct: 5012
Blower Electrical Current: 220V AC, 50 Hz
Blower Duct: Not Included
Blower Configuration: EX
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: Yes
Blower Respiratory EU 220V: Yes
Outdoor Rated: N/A
Port Size: 20"
