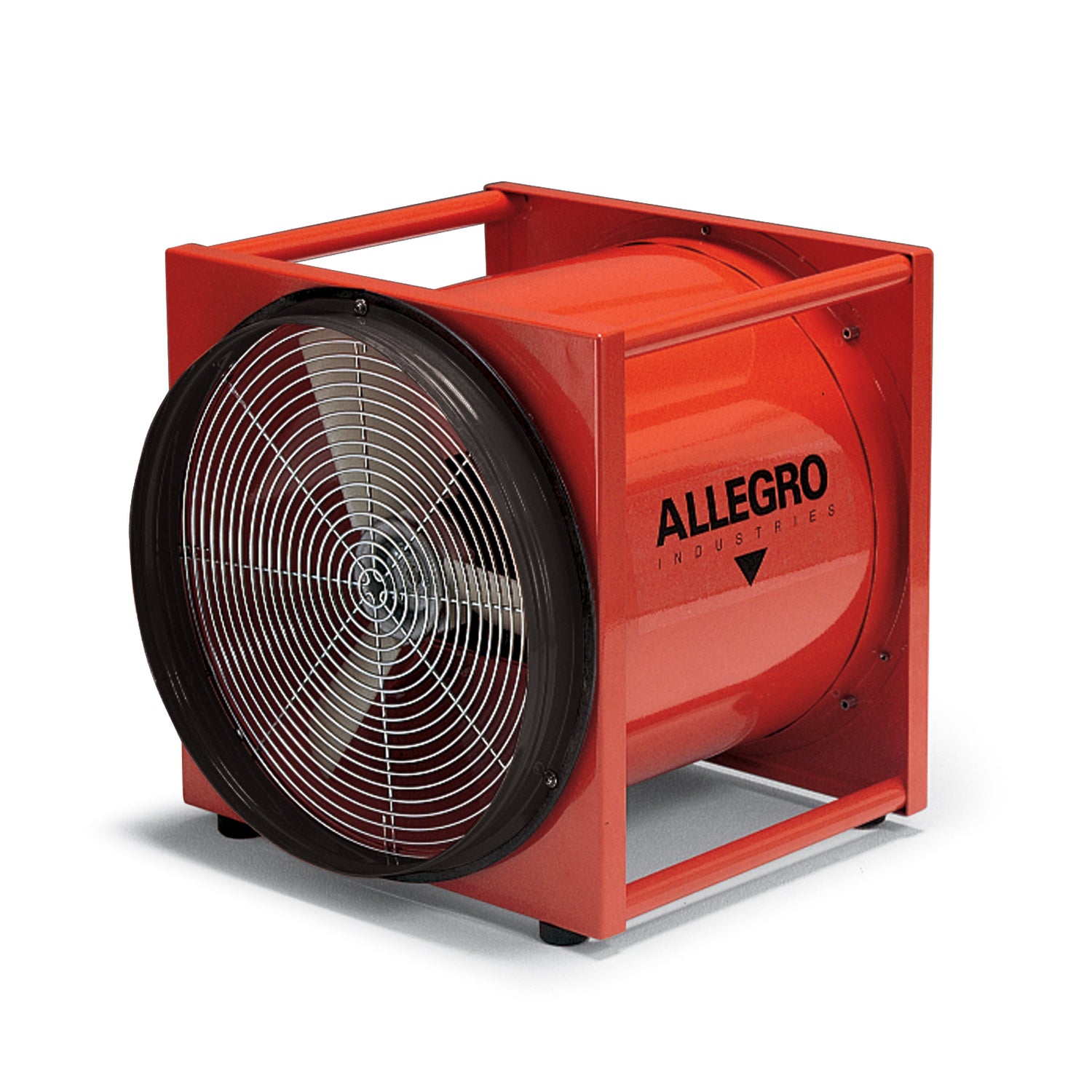

20″ Axial AC Standard Metal Blower (9525)

Designed for applications requiring a maximum amount of output. Housing is made from 16-gauge cold rolled steel and powder-coated in a "safety orange" color that holds a three-blade impeller. It features an interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport, a steel/zinc plated grill and 4 rubber feet.†UL Listed. Certified to CSA Standard C22.2 No.113.

1/2 HP
Available in US and International wiring configurations
UL Recognized, CSA Certified
16-gauge cold rolled steel housing
Integrated carrying handles
Powder-coated in "safety orange"
Glass reinforced Polypropylene (PPG) three blade fan with aluminum hub
Made in USA
Interchangeable flange





Power Tools Amps: N/A
PPE Standards: N/A
Blower Motor HP: 1/2
Blower CFM: 4650
Blower M3 per Hour: 7900
Blower M3 per Min: 132
Blower CFM 1 Bend Duct: 3150
Blower M3 per Hour 1 Bend Duct: 5352
Blower CFM 2 Bend Duct: 2950
Blower M3 per Hour 2 Bend Duct: 5012
Blower Electrical Current: 115V AC, 60 Hz
Blower Duct: Not Included
Blower Configuration: AC
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: No
Blower Respiratory EU 220V: No
Outdoor Rated: N/A
Port Size: N/A
