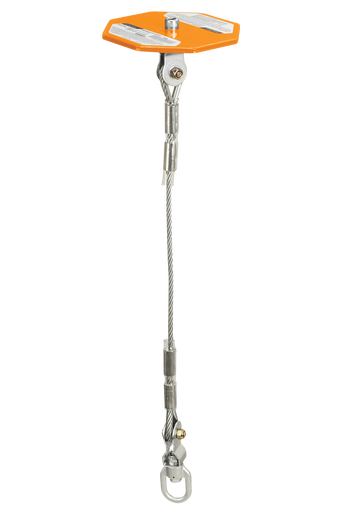

2' Suspended Cable Anchor (PN 74942)

Original price $100.83 - Original price $100.83
Original price
$100.83
$100.83 - $100.83
Current price $100.83

Features

  • Installs through overhead openings in steel deck, concrete or grating
  • 6" x 6" x 1/4" high-visibility steel load-bearing plate.
  • 1/4" galvanized steel cable with swivel connection eye
  • Assembled with steel thimbles and swaged aluminum ferrules
  • Complies with ANSI Z359.18-2017

Material Specifications

  • Cable: 1/4" galvanized steel; 5,000 lb min. static strength
    Plate: Powder coated carbon steel

Performance Specifications

  • Static Strength: 5,000 lb min.
  • ANSI User Capacity: 130 to 310 lb max.
  • OSHA User Capacity: 130 to 425 lb max.

Compliant With:

OSHA 1926.502 and 1910.66
ANSI Z359.18-2017
