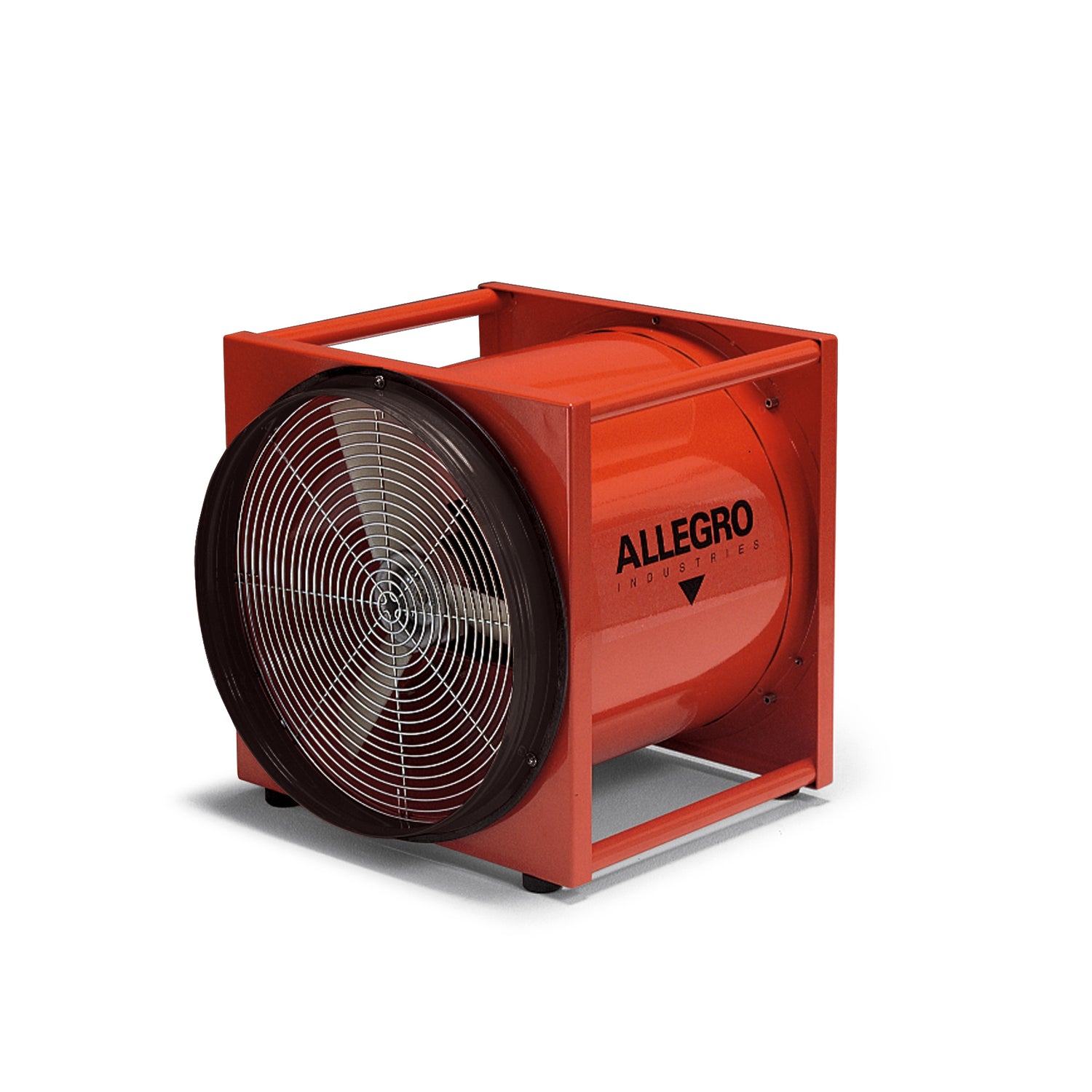

16″ Axial Explosion-Proof (EX) Metal Blower (9515-01)

Designed for use in applications requiring a large amount of output in a†hazardous location environment. Our 16î Axial Explosion-Proof Metal Blower is offered with a Ω hp single-phase motor and an efficient six-blade impeller fan in a rugged metal housing. Also included is a NEMA rated 115V plug to be used with an explosion-proof socket (sold separately). Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G. Certified to CSA†Standard C22.2 No.113. NOTE: Explosion-proof blowers require an explosion-proof socket.

1/2 HP
115/230V AC, 60 Hz, Single Phase
Certified to CSA Standard C22.2 No 113.
Epoxy powder-coated in "safety orange"
18-gauge cold rolled steel housing
Integrated carrying handles
Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G.
Made in USA
Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub





Power Tools Amps: N/A
PPE Standards: N/A
Blower Motor HP: 1/2
Blower CFM: 2900
Blower M3 per Hour: 4927
Blower M3 per Min: 82
Blower CFM 1 Bend Duct: 1800
Blower M3 per Hour 1 Bend Duct: 3058
Blower CFM 2 Bend Duct: 1750
Blower M3 per Hour 2 Bend Duct: 2973
Blower Electrical Current: 115V-230V AC, 60 Hz
Blower Duct: Not Included
Blower Configuration: EX
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: Yes
Blower Respiratory EU 220V: No
Outdoor Rated: N/A
Port Size: N/A
