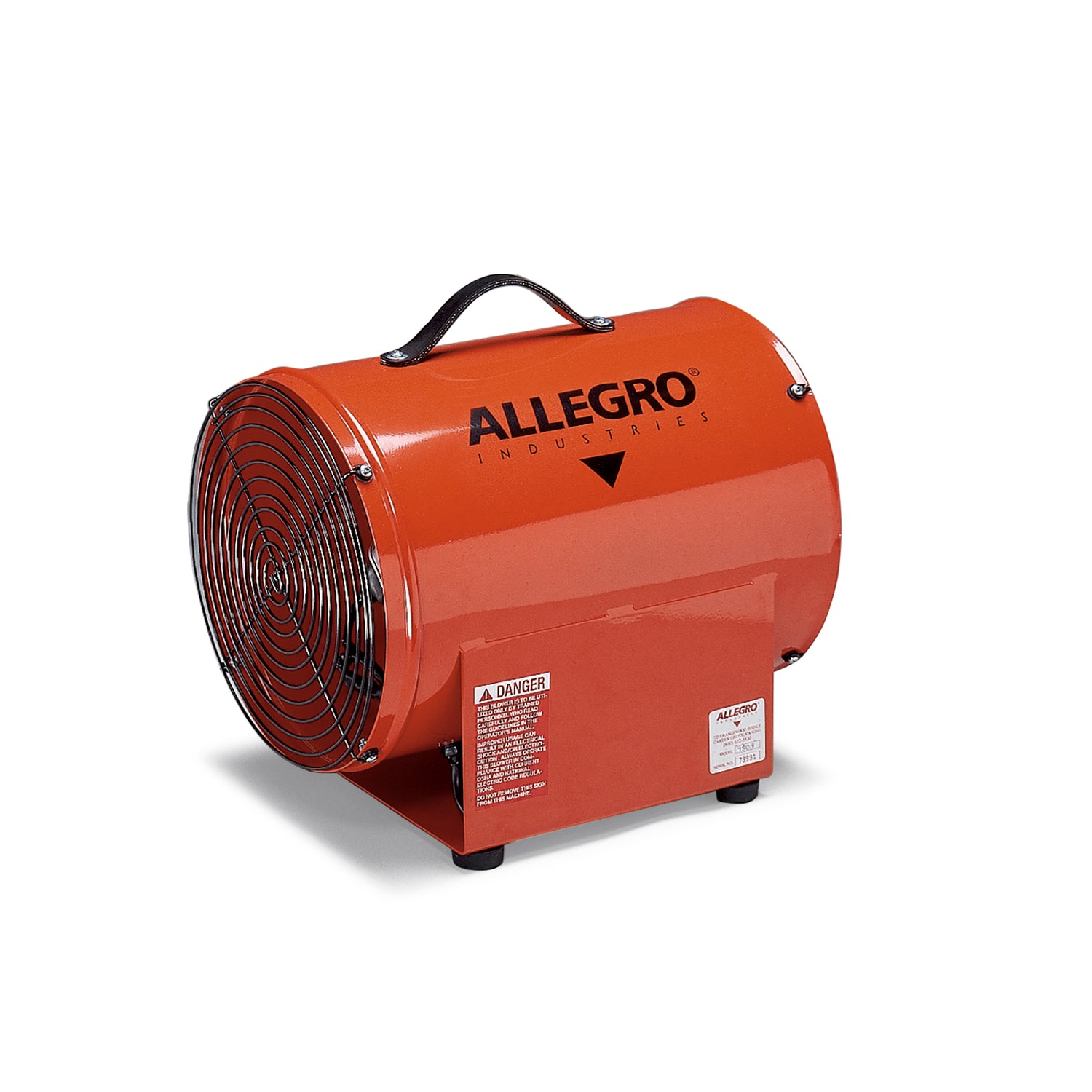

12″ Axial AC Standard Metal Blower (9509)

Designed for applications requiring larger amounts of air output, the Standard 12î Axial Blower offers a 1/3 HP motor with an efficient three-blade impeller in a rugged, lightweight metal housing. Certified to CSA Standard C22.2 No.113.

1/3 HP
120V AC, 60 Hz, Single Phase
UL Recognized, CSA Certified
Powder-coated in "safety orange"
16-gauge cold rolled steel housing
14-gauge steel base
3-ply rubber carrying handle
Certified to CSA Standard C22.2 No.113.
Glass reinforced polypropylene (PPG) three blade fan with aluminum hub





Power Tools Amps: N/A
PPE Standards: N/A
Blower Motor HP: 1/3
Blower CFM: 1763
Blower M3 per Hour: 2995
Blower M3 per Min: 50
Blower CFM 1 Bend Duct: 1401
Blower M3 per Hour 1 Bend Duct: 2380
Blower CFM 2 Bend Duct: 1227
Blower M3 per Hour 2 Bend Duct: 2085
Blower Electrical Current: 120V AC, 60 Hz
Blower Duct: Not Included
Blower Configuration: AC
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: No
Blower Respiratory EU 220V: No
Outdoor Rated: N/A
Port Size: N/A
