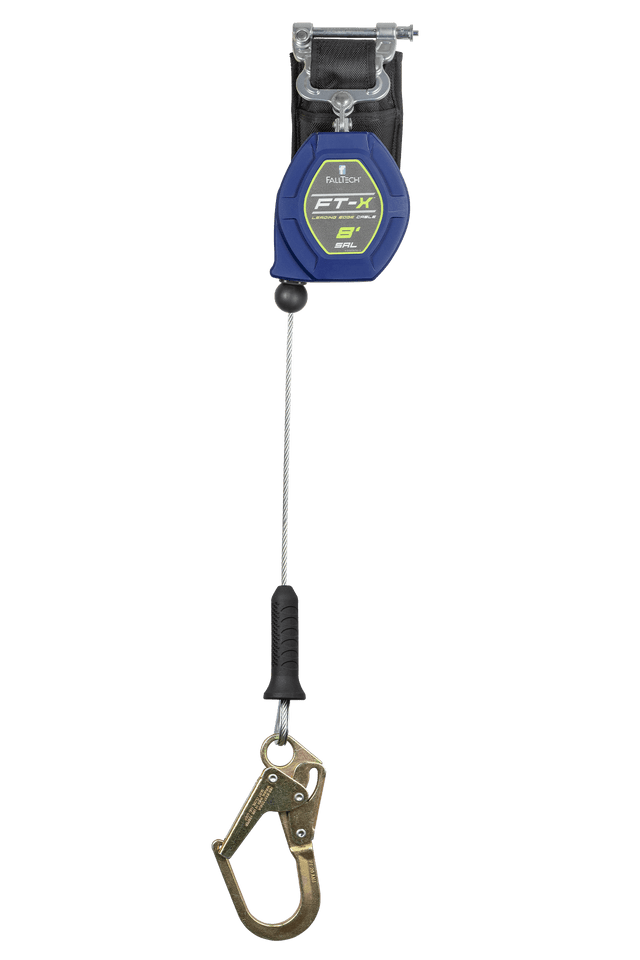

8' FT-X™ Cable Class 2 Leading Edge Personal SRL-P, Single-leg with Steel Mini Rebar Hook (82808SP0)

Features

• Lightest SRL in its class with less than 5 lbs. of effective weight on the back while device is in use
• Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
• Features comprehensive fall clearance charts and tables inside the energy absorber cover
• Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
• Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
• Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
• Complies with ANSI Z359.14-2021 Class 2 SRL-P.


Material Specifications

• Cable: 3/16" galvanized steel; 3,600 lb min. static strength


• Energy Absorber: Polyester tear-away


• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength


• Dorsal Connector: Aluminum alloy; 3,600 lb min.

Performance Specifications

• Static Strength: 3,600 lb min.


• ANSI SRL Class/Type: Class 2 SRL-P


• Avg. Arrest Force: 1,350 lb max.


• Max. Arrest Force: 1,800 lb


• Max. Arrest Distance: 42"


• ANSI User Capacity: 130 to 310 lb max.


• OSHA User Capacity: 130 to 420 lb max.

Compliant With:
