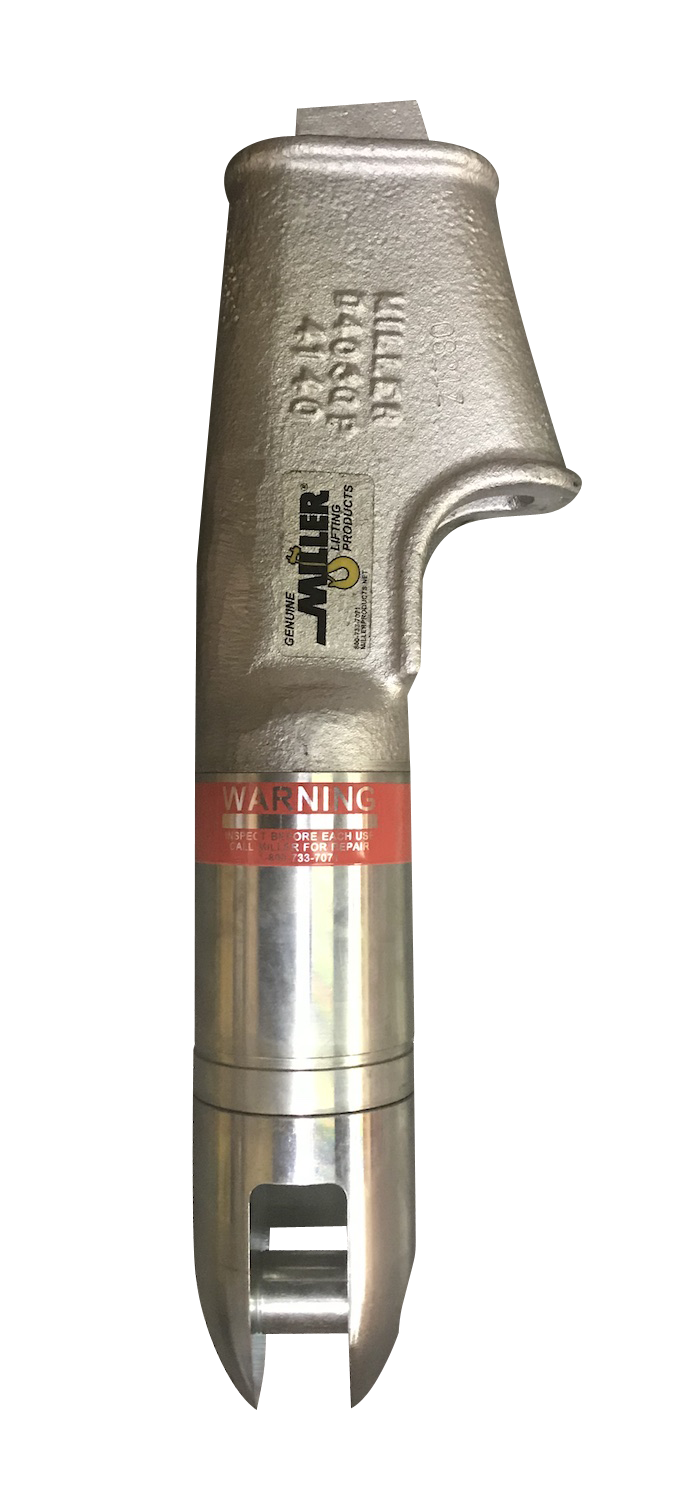

Wedge to Bullet Nose – Type 714

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model C-714 Wedge to Bullet WLL 3 tons	3	C-714	1/2	2	9.92	0.81	0.75	0.63	0.94	3.87	$1,166.00

Miller Angular Contact Ball Bearing Swivel Model D-714 Wedge to Bullet WLL 5 tons	5	D-714	1/2, 5/8	2.5	12.42	1.13	1	0.88	1.56	8.06	$1,419.00

Miller Angular Contact Ball Bearing Swivel Model EE-714 Wedge to Bullet WLL 8.5 tons	8.5	EE-714	1/2, 5/8, 3/4	2.88	14.47	1.25	1.28	1	2.13	14.5	$1,903.00

Miller Angular Contact Ball Bearing Swivel Model G-714 Wedge to Bullet WLL 10 tons	10	G-714	3/4, 7/8, 1	4	19.75	1.75	1.75	1.5	3.25	40	$3,487.00

Miller Angular Contact Ball Bearing Swivel Model GG-714 Wedge to Bullet WLL 15 tons	15	GG-714	3/4, 7/8, 1	4	19.75	1.75	1.75	1.5	3.25	40	$3,575.00

Products

Working Load Limit (ton): 3

MPN: C-714

Rope Size: 1/2

A: 2

B: 9.92

C: 0.81

D: 0.75

E: 0.63

F: 0.94

Weight (lbs): 3.87

Price:$1,166.00

Working Load Limit (ton): 5

MPN: D-714

Rope Size: 1/2, 5/8

A: 2.5

B: 12.42

C: 1.13

D: 1

E: 0.88

F: 1.56

Weight (lbs): 8.06

Price:$1,419.00

Working Load Limit (ton): 8.5

MPN: EE-714

Rope Size: 1/2, 5/8, 3/4

A: 2.88

B: 14.47

C: 1.25

D: 1.28

E: 1

F: 2.13

Weight (lbs): 14.5

Price:$1,903.00

Working Load Limit (ton): 10

MPN: G-714

Rope Size: 3/4, 7/8, 1

A: 4

B: 19.75

C: 1.75

D: 1.75

E: 1.5

F: 3.25

Weight (lbs): 40

Price:$3,487.00

Working Load Limit (ton): 15

MPN: GG-714

Rope Size: 3/4, 7/8, 1

A: 4

B: 19.75

C: 1.75

D: 1.75

E: 1.5

F: 3.25

Weight (lbs): 40

Price:$3,575.00
