Universal Lifting Beam

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow lift lug for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Lift beam, spreader beam, fork lift beam
  • A true universal beam
  • Shackles, hooks, mast tie off and top rigging by others
  • Made in U.S.A.
  • Custom sizes available
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.

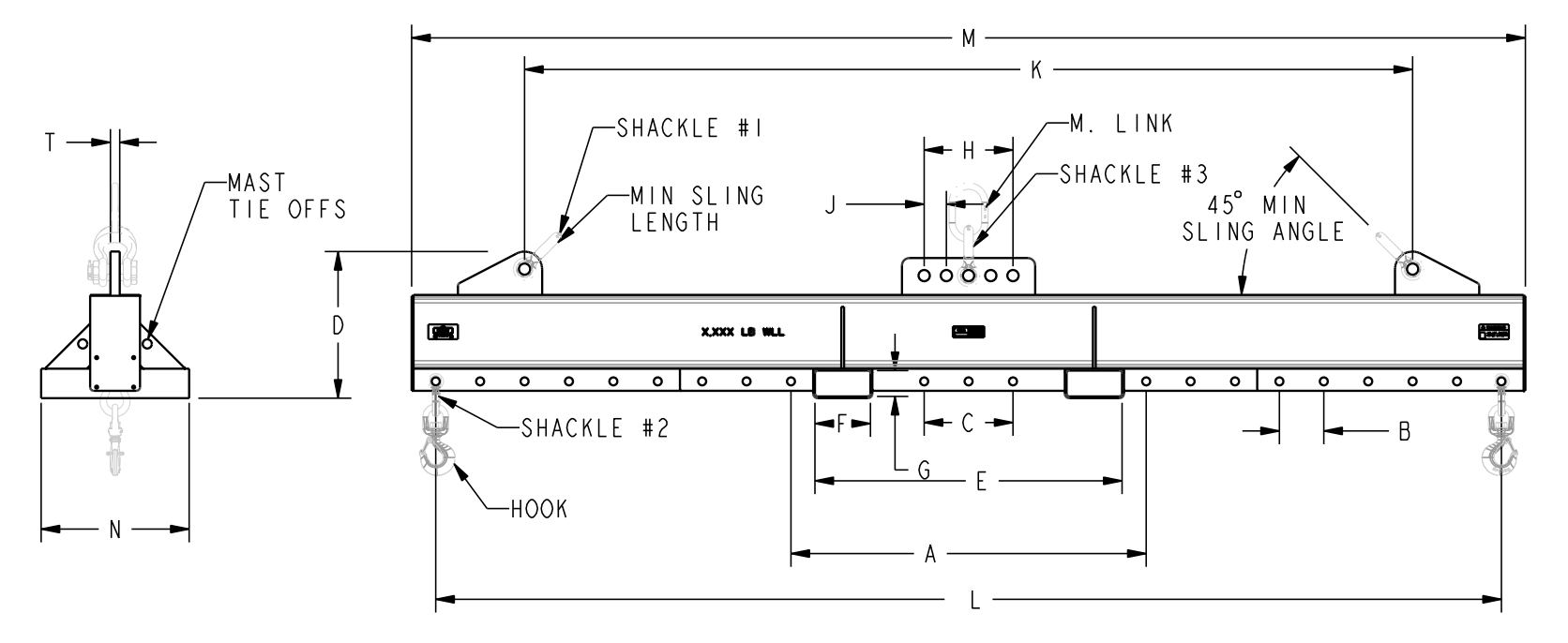

  • All dimensions in inches unless otherwise noted.
  • Mast Tie Off Chain - 8’ Long (Optional)
MPN Capacity (lbs) L = Length A B C D E* F* G* H J K M N T Weight (lbs) Shackle #1 Size Shackle #2 Size Shackle #3 Size M. Link Size Hook Size Min Sling Length Price Quantity
24662 6,000 144 48 6 12 15.7 41.5 7.5 3.5 12 3 120 150.5 20 1 535 3/4" 5/8" 3/4" 3/4" 2t 82" $5,412.92
24663 10,000 144 48 6 12 20 41.5 7.5 3.5 12 3 120 150.5 20 1.25 868 1 1/4" 7/8" 1 1/4" 7/8" 5t 82" $6,166.25
24664 15,000 144 48 6 12 20 41.5 7.5 3.5 12 3 120 150.5 20 1.25 1115 1 1/4" 7/8" 1 1/4" 1" 5t 82" $7,379.98
26336 40,000 144 48 6 12 29.0 41.5 7.5 3.5 12 3 120 150.5 36 1.5 2145 1 3/4" 1 1/8" 1 3/4" 1 1/2" 11t 82" $13,601.00

Products

MPN: 24662
Capacity (lbs): 6,000
L = Length: 144
A: 48
B: 6
C: 12
D: 15.7
E*: 41.5
F*: 7.5
G*: 3.5
H: 12
J: 3
K: 120
M: 150.5
N: 20
T: 1
Weight (lbs): 535
Shackle #1 Size: 3/4"
Shackle #2 Size: 5/8"
Shackle #3 Size: 3/4"
M. Link Size: 3/4"
Hook Size: 2t
Min Sling Length: 82"
Price:$5,412.92
MPN: 24663
Capacity (lbs): 10,000
L = Length: 144
A: 48
B: 6
C: 12
D: 20
E*: 41.5
F*: 7.5
G*: 3.5
H: 12
J: 3
K: 120
M: 150.5
N: 20
T: 1.25
Weight (lbs): 868
Shackle #1 Size: 1 1/4"
Shackle #2 Size: 7/8"
Shackle #3 Size: 1 1/4"
M. Link Size: 7/8"
Hook Size: 5t
Min Sling Length: 82"
Price:$6,166.25
MPN: 24664
Capacity (lbs): 15,000
L = Length: 144
A: 48
B: 6
C: 12
D: 20
E*: 41.5
F*: 7.5
G*: 3.5
H: 12
J: 3
K: 120
M: 150.5
N: 20
T: 1.25
Weight (lbs): 1115
Shackle #1 Size: 1 1/4"
Shackle #2 Size: 7/8"
Shackle #3 Size: 1 1/4"
M. Link Size: 1"
Hook Size: 5t
Min Sling Length: 82"
Price:$7,379.98
MPN: 26336
Capacity (lbs): 40,000
L = Length: 144
A: 48
B: 6
C: 12
D: 29.0
E*: 41.5
F*: 7.5
G*: 3.5
H: 12
J: 3
K: 120
M: 150.5
N: 36
T: 1.5
Weight (lbs): 2145
Shackle #1 Size: 1 3/4"
Shackle #2 Size: 1 1/8"
Shackle #3 Size: 1 3/4"
M. Link Size: 1 1/2"
Hook Size: 11t
Min Sling Length: 82"
Price:$13,601.00

Optional Mast Tie Off Chain

MPN Product Name Weight (lbs) Price Quantity
20410 Mast Tie Off Chain — 8’ Long (20410) 8 $347.62
