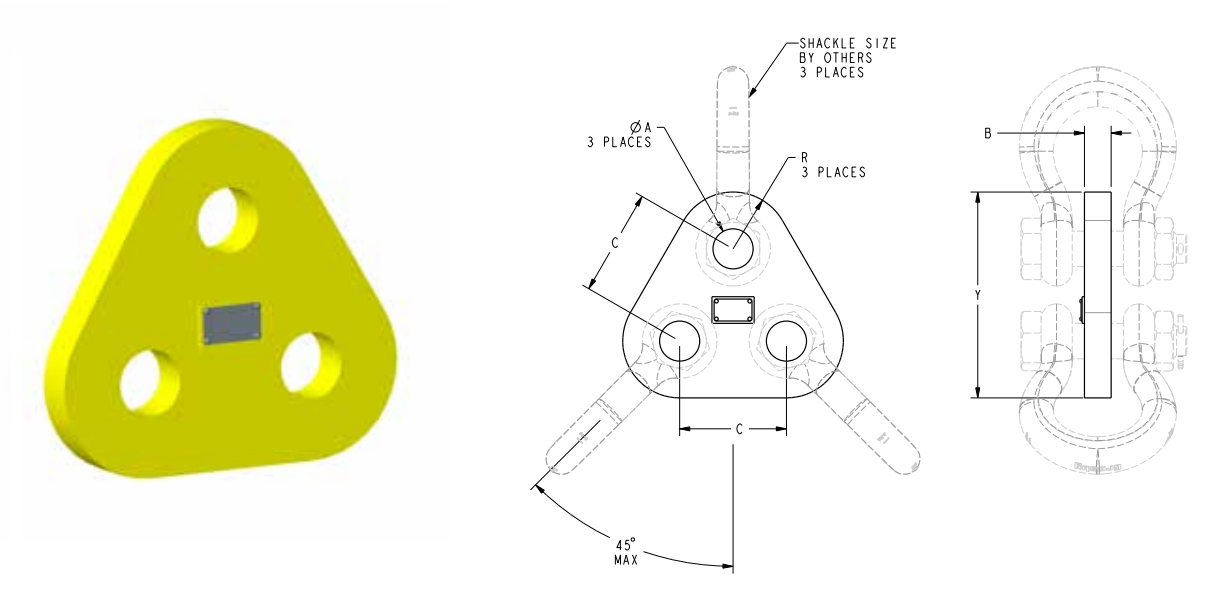

Triangle Rigging Plate / Equalizer

  • 5 to 1 Design
  • Used to equalize loads over multiple rigging lines
  • Helps reduce crane hook rigging overcrowding when multiple rigging lines are required
  • Reduces the chance of over loading a rigging line.
  • Designed to allow for better load distribution in multiple lines.
MPN WLL A B C R Y Weight (lbs) Shackle Size Max Rigging Angle Price Quantity
24783 37,400 2 1.25 4.75 2.5 9.11 20 1 1/2" 45° $1,122.07
24784 55,000 2.25 1.5 6 3.2 11.6 40 1 3/4" 45° $1,397.83
24785 77,000 2.38 2 6.38 3.5 12.52 70 2" 45° $1,673.60
24786 121,000 3 2.5 9.13 4.25 16.4 135 2 1/2" 45° $2,413.40
