Steel Gantry Crane

  • Bolt on top beam
  • Sold with phenolic casters
  • Options: Caster brakers, bolt on end stops, bolt on taglines, and trollies

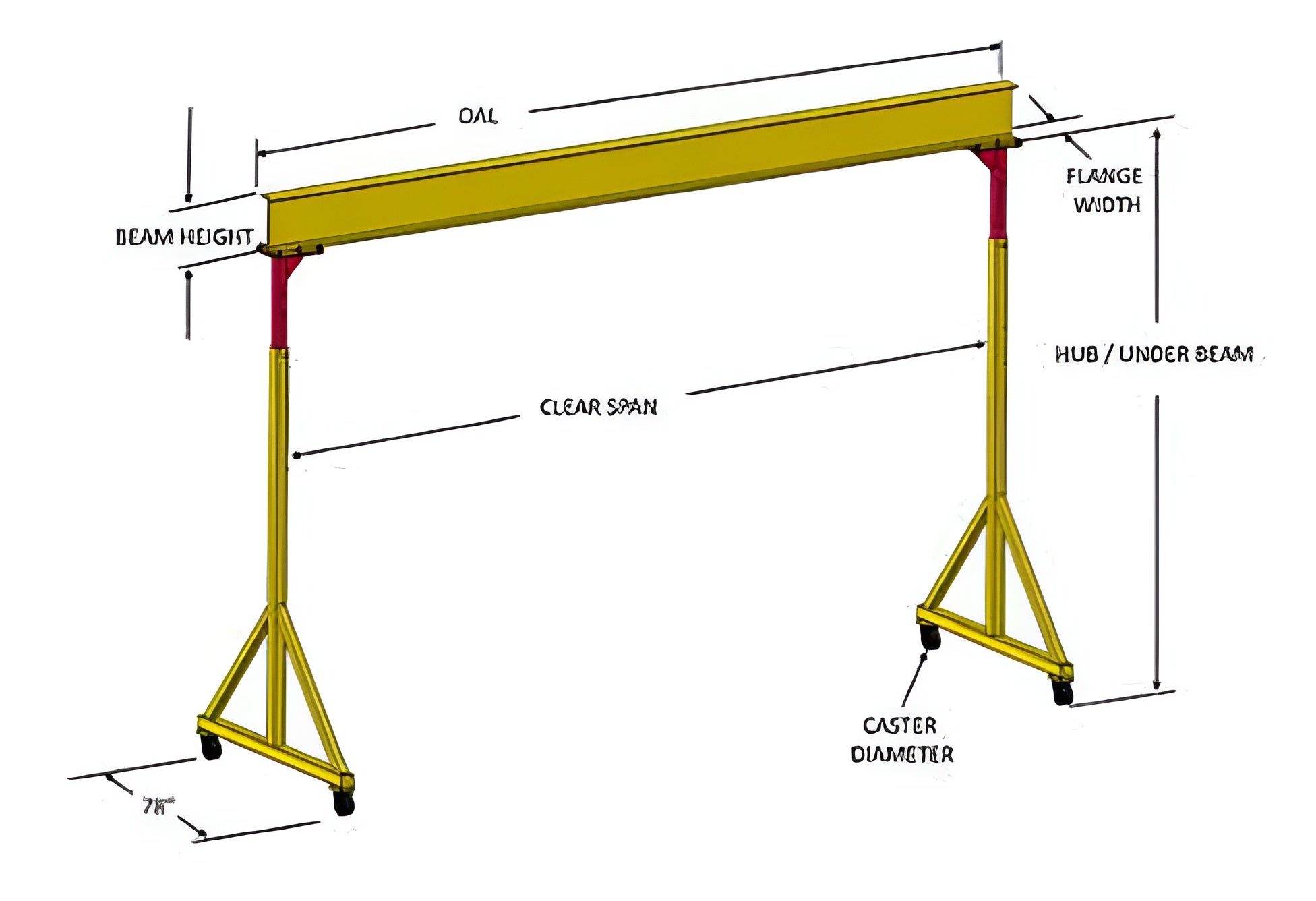

MPN Capacity (Tons) Hub (Under Beam) Height Adjustments Overall Length (OAL) Clear Span Flange Width Beam Height Caster Diameter Weight (lbs) Price Quantity
24943 1 Ton (2,000 LBS) 7'-10' 6" 10' 108" 4" 6" 6" 912 $6,572.66
24942 1 Ton (2,000 LBS) 9’-12’ 6” 10’ 108” 4” 6” 6” 949 $6,692.48
24941 1 Ton (2,000 LBS) 12’-15’ 6” 10’ 108” 4” 6” 6” 1005 $6,808.49
24940 1 Ton (2,000 LBS) 7’-10’ 6” 15’ 168” 5.25” 8.1” 6” 1070 $7,207.87
24939 1 Ton (2,000 LBS) 9’-12’ 6” 15’ 168” 5.25” 8.1” 6” 1107 $7,544.49
24938 1 Ton (2,000 LBS) 12’-15’ 6” 15’ 168” 5.25” 8.1” 6” 1163 $7,829.76
24937 1 Ton (2,000 LBS) 7’-10’ 6” 20’ 228” 5.77” 10.3” 6” 1323 $8,115.03
24936 1 Ton (2,000 LBS) 9’-12’ 6” 20’ 228” 5.77” 10.3” 6” 1361 $8,400.31
24935 1 Ton (2,000 LBS) 12’-15’ 6” 20’ 228” 5.77” 10.3” 6” 1416 $8,685.58
24933 3 Ton (6,000 LBS) 7’-10’ 6” 10’ 108” 5.77” 10.3” 6” 1054 $8,333.74
24932 3 Ton (6,000 LBS) 9’-12’ 6” 10’ 108” 5.77” 10.3” 6” 1095 $8,660.85
24927 3 Ton (6,000 LBS) 12’-15’ 6” 10’ 108” 5.77” 10.3” 6” 1150 $8,987.97
24931 3 Ton (6,000 LBS) 7’-10’ 6” 15’ 168” 6.56” 12.5” 6” 1329 $9,322.68
24930 3 Ton (6,000 LBS) 9’-12’ 6” 15’ 168” 6.56” 12.5” 6” 1370 $9,657.40
24926 3 Ton (6,000 LBS) 12’-15’ 6” 15’ 168” 6.56” 12.5” 6” 1422 $9,992.12
24929 3 Ton (6,000 LBS) 7’-10’ 6” 20’ 228” 7.04” 16.1” 6” 1710 $10,326.84
24928 3 Ton (6,000 LBS) 9’-12’ 6” 20’ 228” 7.04” 16.1” 6” 1740 $10,661.56
24930 3 Ton (6,000 LBS) 12’-15’ 6” 20’ 228” 7.04” 16.1” 6” 1806 $10,996.28
24953 5 Ton (10,000 LBS) 7’-10’ 6” 10’ 107” 7.04” 16.3” 6” 1573 $10,286.71
24952 5 Ton (10,000 LBS) 9’-12’ 6” 10’ 107” 7.04” 16.3” 6” 1661 $10,954.44
24951 5 Ton (10,000 LBS) 12’-15’ 6” 10’ 107” 7.04” 16.3” 6” 1792 $11,625.78
24950 5 Ton (10,000 LBS) 7’-10’ 6” 15’ 167” 9.02” 24.1” 6” 2380 $12,291.41
24949 5 Ton (10,000 LBS) 9’-12’ 6” 15’ 167” 9.02” 24.1” 6” 2470 $12,957.05
24948 5 Ton (10,000 LBS) 12’-15’ 6” 15’ 167” 9.02” 24.1” 6” 2590 $13,622.68
24947 5 Ton (10,000 LBS) 7’-10’ 6” 20’ 227” 9.02” 24.1” 6” 2792 $14,288.32
24946 5 Ton (10,000 LBS) 9’-12’ 6” 20’ 227” 9.02” 24.1” 6” 2880 $14,953.95
24955 5 Ton (10,000 LBS) 12’-15’ 6” 20’ 227” 9.02” 24.1” 6” 3015 $15,619.59

Products

MPN: 24943
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 7'-10'
Height Adjustments: 6"
Overall Length (OAL): 10'
Clear Span: 108"
Flange Width: 4"
Beam Height: 6"
Caster Diameter: 6"
Weight (lbs): 912
Price:$6,572.66
MPN: 24942
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 108”
Flange Width: 4”
Beam Height: 6”
Caster Diameter: 6”
Weight (lbs): 949
Price:$6,692.48
MPN: 24941
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 108”
Flange Width: 4”
Beam Height: 6”
Caster Diameter: 6”
Weight (lbs): 1005
Price:$6,808.49
MPN: 24940
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 168”
Flange Width: 5.25”
Beam Height: 8.1”
Caster Diameter: 6”
Weight (lbs): 1070
Price:$7,207.87
MPN: 24939
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 168”
Flange Width: 5.25”
Beam Height: 8.1”
Caster Diameter: 6”
Weight (lbs): 1107
Price:$7,544.49
MPN: 24938
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 168”
Flange Width: 5.25”
Beam Height: 8.1”
Caster Diameter: 6”
Weight (lbs): 1163
Price:$7,829.76
MPN: 24937
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 228”
Flange Width: 5.77”
Beam Height: 10.3”
Caster Diameter: 6”
Weight (lbs): 1323
Price:$8,115.03
MPN: 24936
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 228”
Flange Width: 5.77”
Beam Height: 10.3”
Caster Diameter: 6”
Weight (lbs): 1361
Price:$8,400.31
MPN: 24935
Capacity (Tons): 1 Ton (2,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 228”
Flange Width: 5.77”
Beam Height: 10.3”
Caster Diameter: 6”
Weight (lbs): 1416
Price:$8,685.58
MPN: 24933
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 108”
Flange Width: 5.77”
Beam Height: 10.3”
Caster Diameter: 6”
Weight (lbs): 1054
Price:$8,333.74
MPN: 24932
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 108”
Flange Width: 5.77”
Beam Height: 10.3”
Caster Diameter: 6”
Weight (lbs): 1095
Price:$8,660.85
MPN: 24927
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 108”
Flange Width: 5.77”
Beam Height: 10.3”
Caster Diameter: 6”
Weight (lbs): 1150
Price:$8,987.97
MPN: 24931
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 168”
Flange Width: 6.56”
Beam Height: 12.5”
Caster Diameter: 6”
Weight (lbs): 1329
Price:$9,322.68
MPN: 24930
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 168”
Flange Width: 6.56”
Beam Height: 12.5”
Caster Diameter: 6”
Weight (lbs): 1370
Price:$9,657.40
MPN: 24926
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 168”
Flange Width: 6.56”
Beam Height: 12.5”
Caster Diameter: 6”
Weight (lbs): 1422
Price:$9,992.12
MPN: 24929
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 228”
Flange Width: 7.04”
Beam Height: 16.1”
Caster Diameter: 6”
Weight (lbs): 1710
Price:$10,326.84
MPN: 24928
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 228”
Flange Width: 7.04”
Beam Height: 16.1”
Caster Diameter: 6”
Weight (lbs): 1740
Price:$10,661.56
MPN: 24930
Capacity (Tons): 3 Ton (6,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 228”
Flange Width: 7.04”
Beam Height: 16.1”
Caster Diameter: 6”
Weight (lbs): 1806
Price:$10,996.28
MPN: 24953
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 107”
Flange Width: 7.04”
Beam Height: 16.3”
Caster Diameter: 6”
Weight (lbs): 1573
Price:$10,286.71
MPN: 24952
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 107”
Flange Width: 7.04”
Beam Height: 16.3”
Caster Diameter: 6”
Weight (lbs): 1661
Price:$10,954.44
MPN: 24951
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 10’
Clear Span: 107”
Flange Width: 7.04”
Beam Height: 16.3”
Caster Diameter: 6”
Weight (lbs): 1792
Price:$11,625.78
MPN: 24950
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 167”
Flange Width: 9.02”
Beam Height: 24.1”
Caster Diameter: 6”
Weight (lbs): 2380
Price:$12,291.41
MPN: 24949
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 167”
Flange Width: 9.02”
Beam Height: 24.1”
Caster Diameter: 6”
Weight (lbs): 2470
Price:$12,957.05
MPN: 24948
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 15’
Clear Span: 167”
Flange Width: 9.02”
Beam Height: 24.1”
Caster Diameter: 6”
Weight (lbs): 2590
Price:$13,622.68
MPN: 24947
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 7’-10’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 227”
Flange Width: 9.02”
Beam Height: 24.1”
Caster Diameter: 6”
Weight (lbs): 2792
Price:$14,288.32
MPN: 24946
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 9’-12’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 227”
Flange Width: 9.02”
Beam Height: 24.1”
Caster Diameter: 6”
Weight (lbs): 2880
Price:$14,953.95
MPN: 24955
Capacity (Tons): 5 Ton (10,000 LBS)
Hub (Under Beam): 12’-15’
Height Adjustments: 6”
Overall Length (OAL): 20’
Clear Span: 227”
Flange Width: 9.02”
Beam Height: 24.1”
Caster Diameter: 6”
Weight (lbs): 3015
Price:$15,619.59
