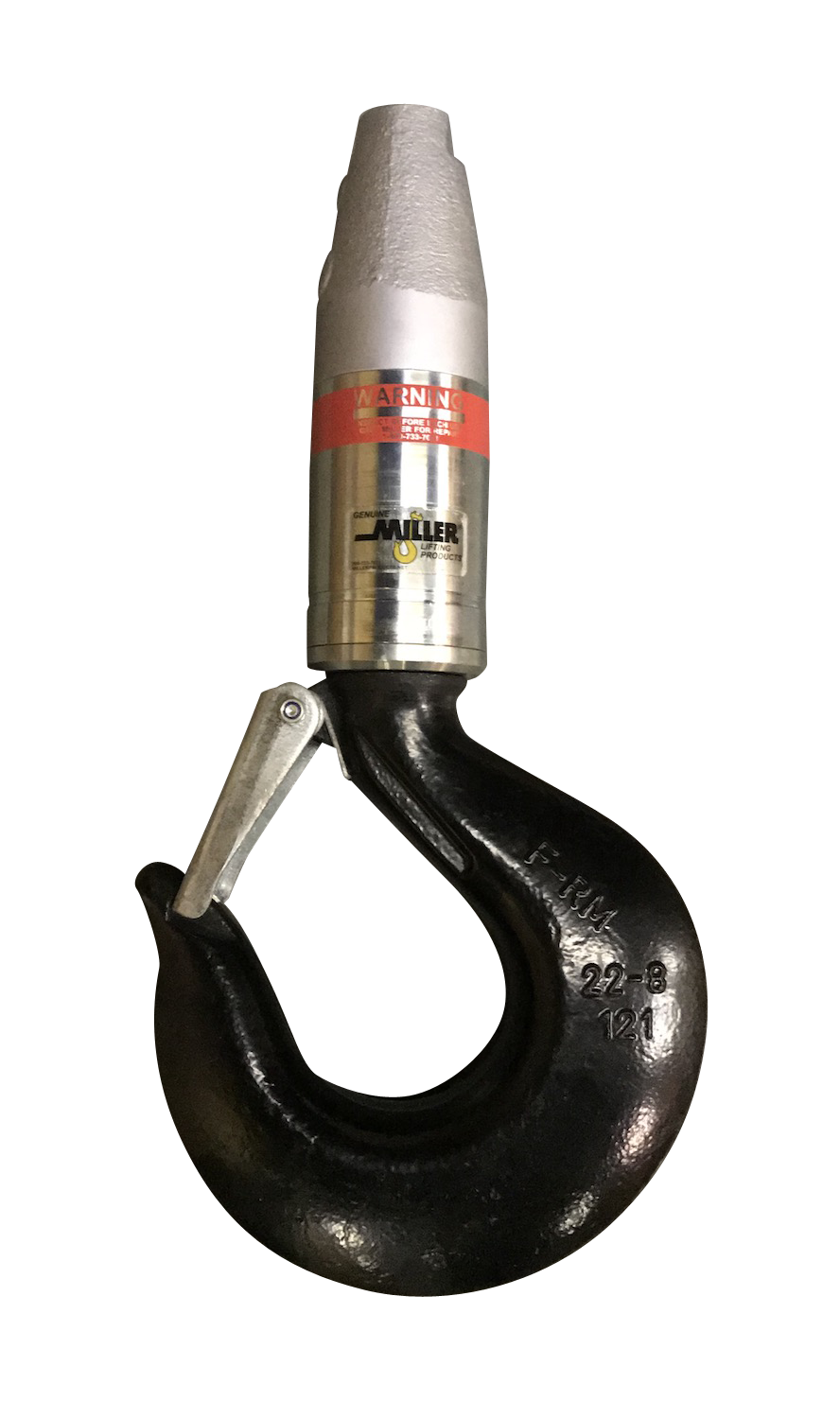

Socket to Hook – Type 515

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	H	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model D-515 Socket to Hook WLL 5 tons	5	D-515	5/8	2.5	12.19	0.69	6.5	2.5	1.69	1.81	11	$1,628.00

Miller Angular Contact Ball Bearing Swivel Model EE-515 Socket to Hook WLL 8.5 tons	8.5	EE-515	3/4	2.88	15.56	0.81	8.69	3.25	2.25	2.59	23.25	$2,112.00

Miller Angular Contact Ball Bearing Swivel Model G-515 Socket to Hook WLL 10 tons	10	G-515	7/8	4	18.38	0.97	11	3.25	3	3	46	$3,795.00

Miller Angular Contact Ball Bearing Swivel Model GG-515 Socket to Hook WLL 15 tons	15	GG-515	1	4	18.38	1.13	11	4.25	3	3	46	$3,927.00

Miller Angular Contact Ball Bearing Swivel Model H-515 Socket to Hook WLL 25 tons	25	H-515	1 1/4	5	24.88	1.38	12.02	4.41	3.54	4.21	125	$7,183.00

Miller Angular Contact Ball Bearing Swivel Model HH-515 Socket to Hook WLL 35 tons	35	HH-515	1 1/2	5	24.88	1.63	12.02	4.41	3.54	4.21	125	$9,735.00

Products

Working Load Limit (ton): 5

MPN: D-515

Rope Size: 5/8

A: 2.5

B: 12.19

C: 0.69

D: 6.5

E: 2.5

F: 1.69

H: 1.81

Weight (lbs): 11

Price:$1,628.00

Working Load Limit (ton): 8.5

MPN: EE-515

Rope Size: 3/4

A: 2.88

B: 15.56

C: 0.81

D: 8.69

E: 3.25

F: 2.25

H: 2.59

Weight (lbs): 23.25

Price:$2,112.00

Working Load Limit (ton): 10

MPN: G-515

Rope Size: 7/8

A: 4

B: 18.38

C: 0.97

D: 11

E: 3.25

F: 3

H: 3

Weight (lbs): 46

Price:$3,795.00

Working Load Limit (ton): 15

MPN: GG-515

Rope Size: 1

A: 4

B: 18.38

C: 1.13

D: 11

E: 4.25

F: 3

H: 3

Weight (lbs): 46

Price:$3,927.00

Working Load Limit (ton): 25

MPN: H-515

Rope Size: 1 1/4

A: 5

B: 24.88

C: 1.38

D: 12.02

E: 4.41

F: 3.54

H: 4.21

Weight (lbs): 125

Price:$7,183.00

Working Load Limit (ton): 35

MPN: HH-515

Rope Size: 1 1/2

A: 5

B: 24.88

C: 1.63

D: 12.02

E: 4.41

F: 3.54

H: 4.21

Weight (lbs): 125

Price:$9,735.00
