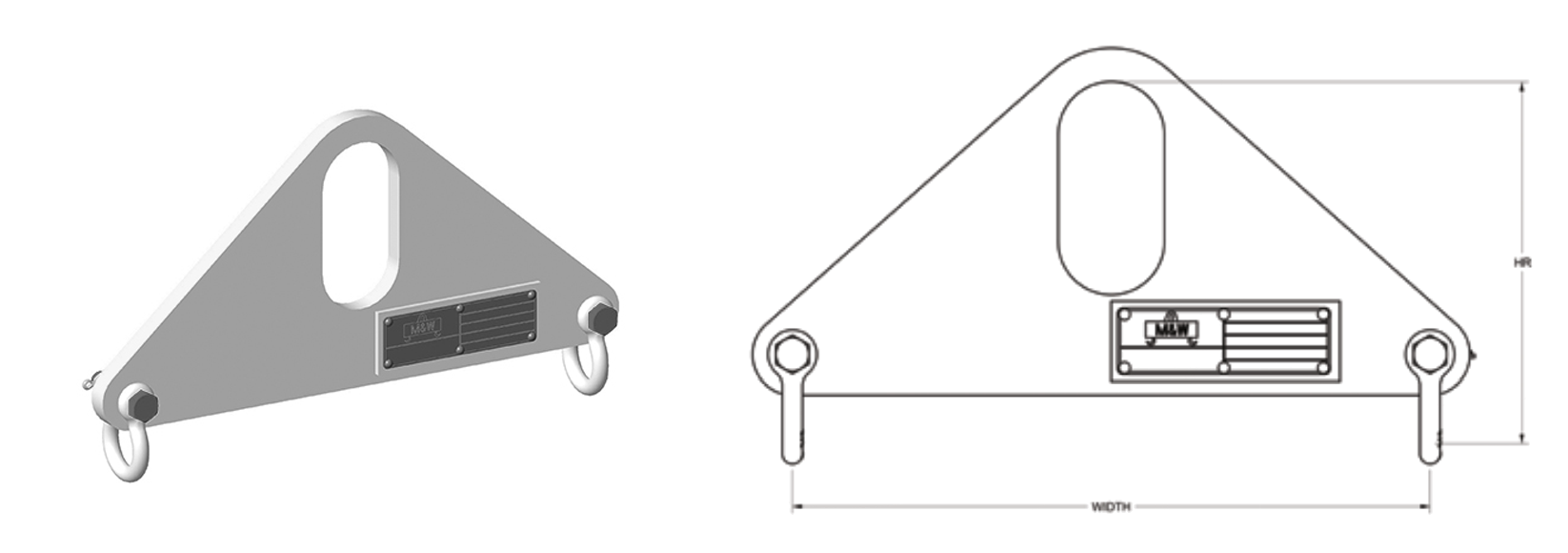

Small Length Lift Beams – Lift Bale Top

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Supplied with shackles
WLL MPN Bale Width Bale Height Headroom (in) Width (in) Weight (lbs) Bottom Shackle Size Price Quantity
500 20347 2 4 6.8 12 8 3/8” $358.65
500 20348 2 4 6.8 24 15 3/8” $455.22
500 20349 2 4 6.8 36 21 3/8” $537.98
2,000 20350 3 5 9.8 12 18 5/8” $675.93
2,000 20351 3 5 9.8 24 31 5/8” $800.08
2,000 20352 3 5 9.8 36 45 5/8” $938.02
6,000 20353 3 5 10.8 12 26 3/4” $938.02
6,000 20354 3 5 10.8 24 48 3/4” $1,158.73
6,000 20355 3 5 10.8 36 69 3/4” $1,531.18
10,000 24031 3 5 13 12 34 3/4" $801.39
10,000 24032 3 5 13 24 56 3/4" $959.04
10,000 24033 3 5 13 36 80 3/4" $1,261.20
20,000 20356 4 7 16.1 24 92 7/8” $1,765.68
20,000 20357 4 7 16.1 36 129 7/8” $2,662.32
40,000 24034 5 9 25 24 225 1 1/4" $2,877.12
40,000 24035 5 9 25 36 300 1 1/4" $4,112.04
80,000 24036 7 14 31 24 460 1 3/4" $4,734.76
80,000 24037 7 14 31 36 600 1 3/4" $5,630.74
