Round Base Swivel Hoist Ring 4,000 lbs WLL (44642)
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 44642
Description: Standard Round Plate Hoist Ring
Rated Load: 4,000 lbs

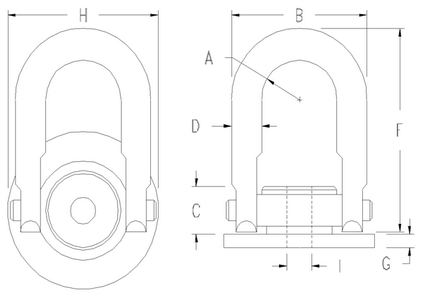

A: 0.92 in
B: 3 21/64 in
C: 1 7/32 in
D: 3/4 in
F: 6 3/4 in
G: 1/4 in
H: 3 1/2 in
I: 5/8 in
Torque: 60 ft-lbs
Weight: 3.5 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 4:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Rated: 100% From 0° - 90°
Screws: High tensile Alloy screws equivalent to Grade 8 must be used
Thread Type: UNC and Coil screws available
Thread Engagement: Should be at least 1.5 times the screw diameter
