Actek | SKU: AK-68090

Forged Hoist Ring 12,000 lbs WLL (68090)

Name: Forged Hoist Ring 12,000 lbs WLL (68090)
Brand: Actek
SKU: AK-68090
Price: 69.68 USD
Availability: InStock

$69.68

Manufacturer: ACTEK® Manufacturing & Engineering

Part Number: 68090

Description: Forged Hoist Ring

Rated Load: 12,000 lbs

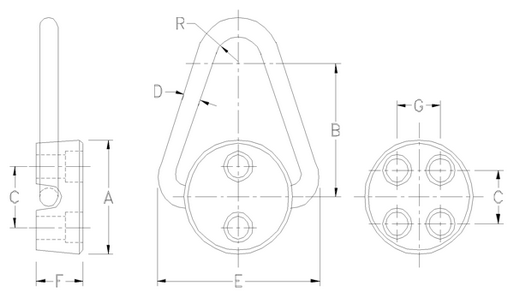

A: 3 1/8 in

B: 4 in

C: 1 5/8 in

D: 3/4 in

E: 5 in

F: 1 3/8 in

G: 1 1/4 in

R: 7/8 in

Torque: 20 - 25 ft-lbs

Weight: 4.00 lbs

Pivot Angle: 180°

Safety Factor: 5:1

Material: Alloy Steel

Finish: Black Oxide

Inspected: Magnetic Particle Inspected

Heat Treat: Certified Heat Treatment

Note: Screws not included

Inch Screw x Length (P/N): 1/2"-13 x 2-1/2 (46052-FF)

Metric Screw x Length (P/N): M12 x 1.75 x 50 (49048-FF)
