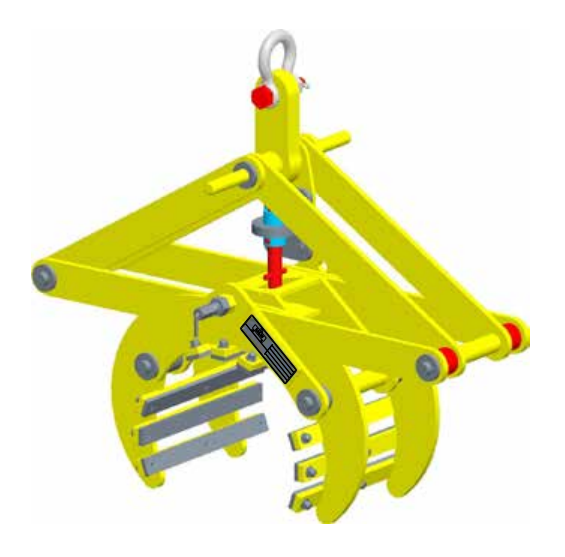

Padded Pipe Lifting Clamps

  • Heavy-duty design to hold up to outdoor environments.
  • Rugged gripping pads conform to load.
  • Eliminates the need for rigging when handling large pipe.
  • To be used only for vertical lifting.
  • Large lifting shackle accommodates crane hooks or supplementary rigging.
  • Can be used in pairs to handle longer pipes with lifting beam or spreader beam.
  • Replacement pad set installs easily and quickly.
  • Indexing latch mechanism allows lifter to be held open.
  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifters proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
WLL MPN Weight (lbs) Pipe Dia Min Pipe Dia Max Max Grip Opening Replacement Pad Set Part Number Price Quantity
1,200 20053 26 3.5" 5.5" 6.4" 20053-17 (Pad) $4,883.22
2,000 19911 82 5.5" 8.8" 10.3" 19911-17 (Pad) $6,414.39
4,500 20054 253 8.8" 14" 16.4" 20054-17 (Pad) $7,393.80
10,000 20055 550 14" 22" 25.5" 20055-17 (Pad) $9,104.30

Products

Replacement Pad Set

Replacement Pad Set Part Number Product Name Price Quantity
20053-17 (Pad) Replacement Pad Set For 20053 (20053-17) $187.60
19911-17 (Pad) Replacement Pad Set For 19911 (19911-17) $375.21
20054-17 (Pad) Replacement Pad Set For 20054 (20054-17) $562.81
20055-17 (Pad) Replacement Pad Set For 20055 (20055-17) $750.42
