Non-Conductive Battery Lifting Beam

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow lift lug for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Quick and easy adjustment of unbalanced loads.
  • Ideally suited to handle large batteries
  • Natural spark proof insulation
  • Optional Hooks and Lug connections available - call for ordering assistance
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.

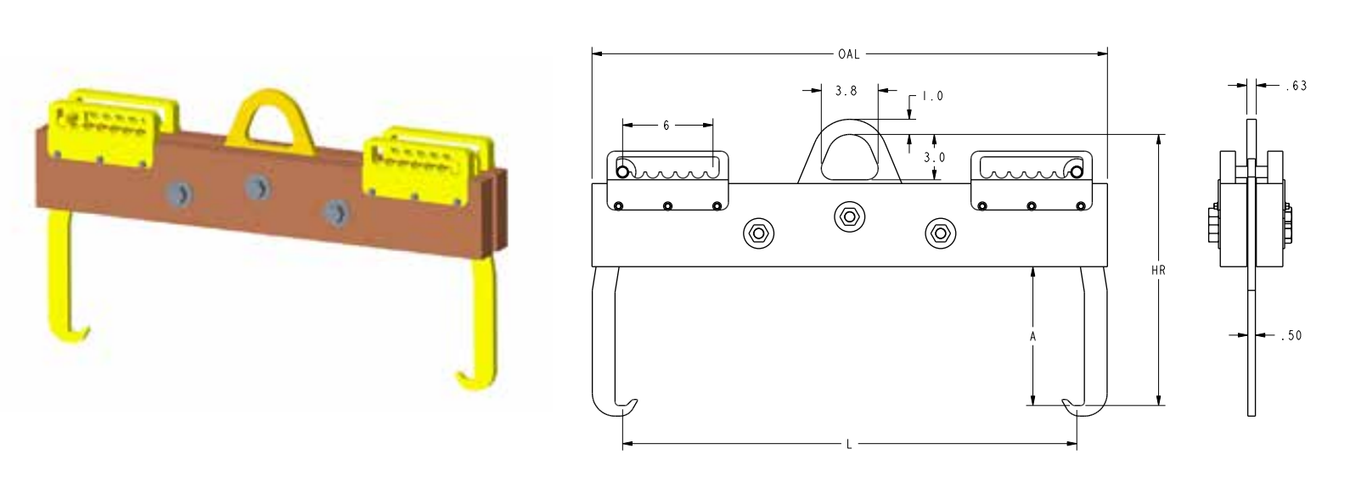

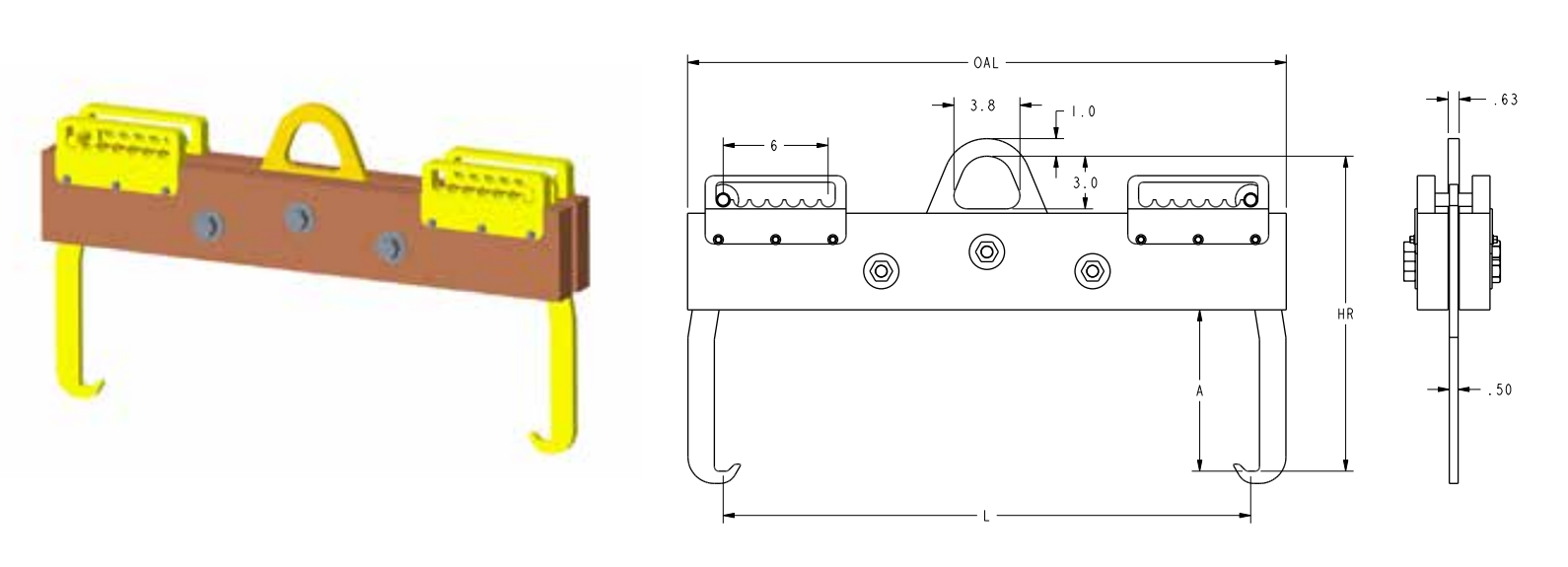

  • All dimensions in inches unless otherwise noted.
WLL MPN A Overall Length (OAL) Hr (in) L min L max Weight (lbs) Price Quantity
2,000 17441 10.2 34 19 18.0 30.0 62 $1,779.48
2,000 17442 10.2 46 19 30.0 42.0 71 $1,903.63
4,000 17443 9.2 34 18 18.0 30.0 67 $2,124.34
4,000 17171 9.2 46 18 30.0 42.0 79 $2,248.49
