Low Headroom, Multiple Length Standard Lifting Beam

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • Machined to exacting tolerances.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Standard with hooks.

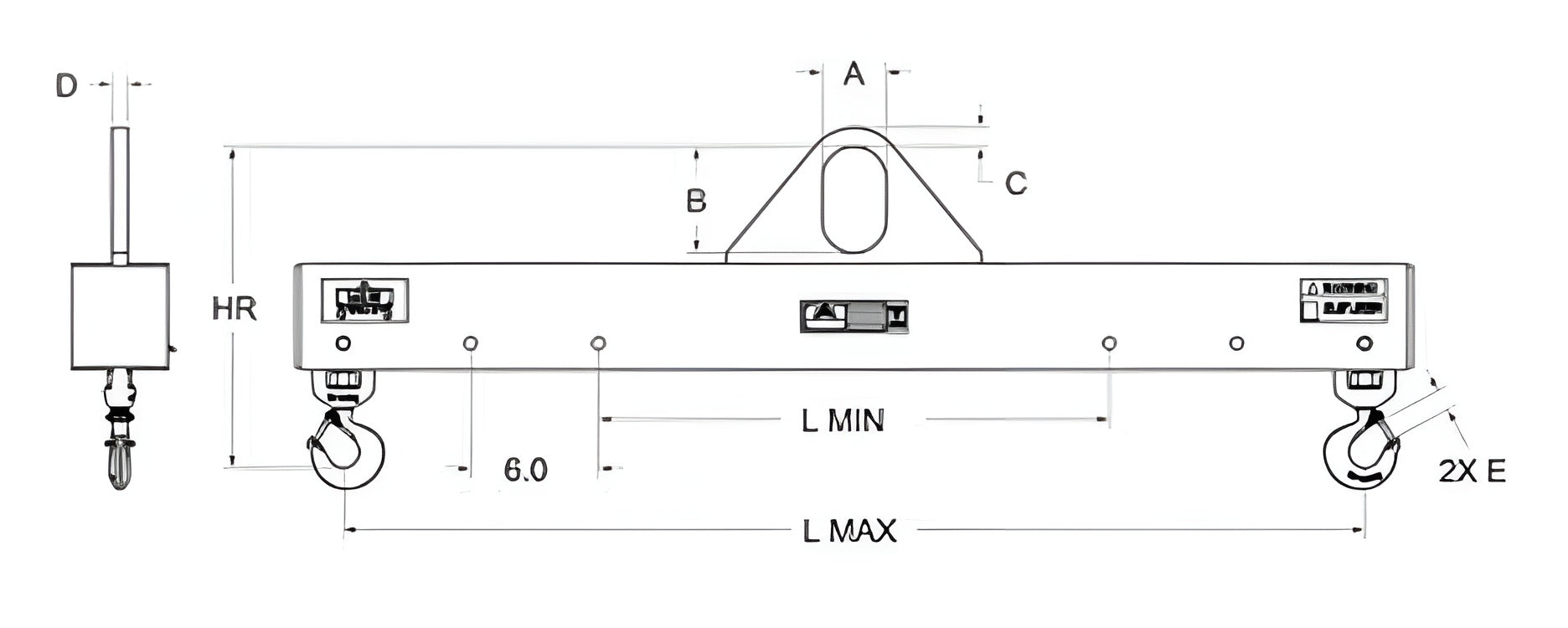

MPN WLL Pick Points - Outside Length (L) Headroom (in) Weight (lbs) C A B D E Price Quantity
11937 1,000 2', 3', 4' 13.11 56 0.88 3.0 5.0 0.75 0.91 $1,613.94
11959 1,000 4', 5', 6' 13.11 75 0.88 3.0 5.0 0.75 0.91 $1,655.33
11960 1,000 6', 7', 8' 13.11 95 0.88 3.0 5.0 0.75 0.91 $1,751.89
11961 1,000 8', 9', 10' 13.11 115 0.88 3.0 5.0 0.75 0.91 $1,820.86
11962 1,000 10', 11', 12' 13.11 200 0.88 3.0 5.0 0.75 0.91 $2,110.54
11968 1,000 12', 13', 14' 13.11 226 0.88 3.0 5.0 0.75 0.91 $2,207.10
11971 1,000 14', 15', 16' 14.11 313 0.88 3.0 5.0 0.75 0.91 $2,455.40
11974 1,000 16', 17', 18' 14.11 350 0.88 3.0 5.0 0.75 0.91 $2,543.69
11977 1,000 18', 19', 20' 14.11 390 0.88 3.0 5.0 0.75 0.91 $2,684.39
11981 1,000 22', 23', 24' 15.11 535 0.88 3.0 5.0 0.75 0.91 $3,034.77
11983 2,000 2', 3', 4' 13.11 56 0.88 3.0 5.0 0.75 0.91 $1,710.51
11984 2,000 4', 5', 6' 13.11 75 0.88 3.0 5.0 0.75 0.91 $1,751.89
11985 2,000 6', 7', 8' 14.11 167 0.88 3.0 5.0 0.75 0.91 $2,013.98
11989 2,000 8', 9', 10' 14.11 205 0.88 3.0 5.0 0.75 0.91 $2,082.95
11990 2,000 10', 11', 12' 14.11 240 0.88 3.0 5.0 0.75 0.91 $2,345.05
12017 2,000 12', 13', 14' 15.11 320 0.88 3.0 5.0 0.75 0.91 $2,551.96
12018 2,000 14', 15', 16' 15.11 365 0.88 3.0 5.0 0.75 0.91 $2,676.11
12019 2,000 16', 17', 18' 15.11 500 0.88 3.0 5.0 0.75 0.91 $3,007.18
12020 2,000 18', 19', 20' 16.11 525 0.88 3.0 5.0 0.75 0.91 $3,034.77
12024 2,000 22', 23', 24' 17.11 945 0.88 3.0 5.0 0.75 0.91 $4,138.32
12032 4,000 2', 3', 4' 15.12 98 0.88 3.0 5.0 0.75 1.00 $1,848.45
12033 4,000 4', 5', 6' 15.12 135 0.88 3.0 5.0 0.75 1.00 $2,013.98
12034 4,000 6', 7', 8' 16.12 200 0.88 3.0 5.0 0.75 1.00 $2,138.13
12039 4,000 8', 9', 10' 16.12 295 0.88 3.0 5.0 0.75 1.00 $2,427.81
12042 4,000 10', 11', 12' 17.12 395 0.88 3.0 5.0 0.75 1.00 $2,662.32
12046 4,000 12', 13', 14' 18.12 575 0.88 3.0 5.0 0.75 1.00 $3,296.86
12050 4,000 14', 15', 16' 18.12 650 0.88 3.0 5.0 0.75 1.00 $3,476.19
12055 4,000 16', 17', 18' 19.12 771 0.88 3.0 5.0 0.75 1.00 $4,869.42
12059 4,000 18', 19', 20' 20.12 1,060 0.88 3.0 5.0 0.75 1.00 $5,724.67
12063 4,000 22', 23', 24' 22.12 1,510 0.88 3.0 5.0 0.75 1.00 $6,690.28
12069 6,000 2', 3', 4' 15.25 120 1.25 3.0 5.0 1.00 1.00 $2,234.69
12084 6,000 4', 5', 6' 16.25 180 1.25 3.0 5.0 1.00 1.00 $2,372.64
12087 6,000 6', 7', 8' 17.25 255 1.25 3.0 5.0 1.00 1.00 $2,565.76
12090 6,000 8', 9', 10' 18.25 380 1.25 3.0 5.0 1.00 1.00 $2,676.11
12094 6,000 10', 11', 12' 18.25 440 1.25 3.0 5.0 1.00 1.00 $2,952.00
12098 6,000 12', 13', 14' 19.25 635 1.25 3.0 5.0 1.00 1.00 $4,690.09
12102 6,000 14', 15', 16' 19.25 715 1.25 3.0 5.0 1.00 1.00 $5,034.95
12106 6,000 16', 17', 18' 20.25 990 1.25 3.0 5.0 1.00 1.00 $5,572.94
12109 6,000 18', 19', 20' 20.25 1,295 1.25 3.0 5.0 1.00 1.00 $6,221.27
12112 6,000 22', 23', 24' 22.25 1,310 1.25 3.0 5.0 1.00 1.00 $6,731.67
12117 10,000 2', 3', 4' 21.25 265 2.0 4.0 7.0 1.25 1.09 $3,117.53
12123 10,000 4', 5', 6' 21.25 345 2.0 4.0 7.0 1.25 1.09 $3,421.01
12126 10,000 6', 7', 8' 21.25 430 2.0 4.0 7.0 1.25 1.09 $3,862.43
12129 10,000 8', 9', 10' 22.25 500 2.0 4.0 7.0 1.25 1.09 $4,124.52
12132 10,000 10', 11', 12' 21.12 590 2.0 4.0 7.0 1.25 1.09 $4,786.66
12138 10,000 12', 13', 14' 22.25 970 2.0 4.0 7.0 1.25 1.09 $5,379.81
12141 10,000 14', 15', 16' 22.25 1,095 2.0 4.0 7.0 1.25 1.09 $5,862.62
12148 10,000 16', 17', 18' 24.25 1,035 2.0 4.0 7.0 1.25 1.09 $5,959.18
12152 10,000 18', 19', 20' 24.25 1,340 2.0 4.0 7.0 1.25 1.09 $6,593.72
12155 10,000 22', 23', 24' 26.5 1,800 2.0 4.0 7.0 1.25 1.09 $7,531.74
