M30 x 3.50 Forged Swivel Hoist Rings 4,500 kg WLL (56950)
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 56950
Description: Forged Swivel Hoist Ring
Rated Load: 4,500 kg
Thread Size: M30 x 3.50

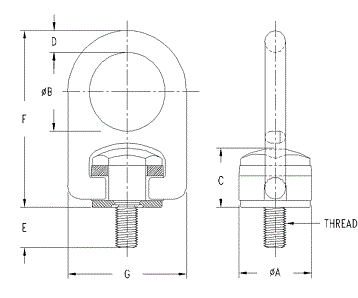

A: 2.95 in
B: 3.20 in
C: 2.60 in
D: 1.00 in
E: 50 mm
F: 7.58 in
G: 5.40 in
Torque: 637 Nm
Weight: 9 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Rated at: 100% From 0° - 90°
ASME B30.26: Meets or exceeds requirements
