M20 x 2.50 Forged Swivel Hoist Rings 3,000 kg WLL (56942)
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 56942
Description: Forged Swivel Hoist Ring
Rated Load: 3,000 kg
Thread Size: M20 x 2.50

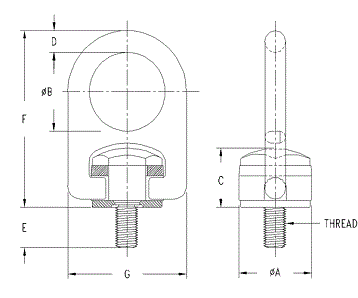

A: 2.95 in
B: 3.20 in
C: 2.66 in
D: 1.00 in
E: 30 mm
F: 7.58 in
G: 5.40 in
Torque: 135 Nm
Weight: 9 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Rated at: 100% From 0° - 90°
ASME B30.26: Meets or exceeds requirements
Couldn't load pickup availability
M20 x 2.50 Forged Swivel Hoist Rings 3,000 kg WLL (56942)
Specifications
Specifications
-
Category
-
Domestic
-
Material
-
Thread Diameter
-
Thread Size
-
Working Load Limit
-
MPN
-
Torque
-
Weight
