5/16" - 18 Side Load Hoist Ring 650 lbs WLL (43510)
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 43510
Description: Side Load Hoist Ring
Rated Load: 650 lbs
Thread Size: 5/16" - 18

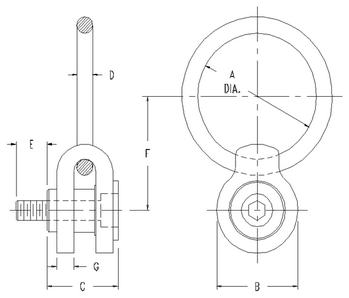

A: 2 in
B: 1 1/2 in
C: 1.60 in
D: 3/8 in
E: 9/16 in
F: 1 15/16 in
G: 3/8 in
Torque: 3.5 ft-lbs
Weight: 0.85 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Note: Also available with Master Links
Thread: Longer thread projected and Fine thread available
