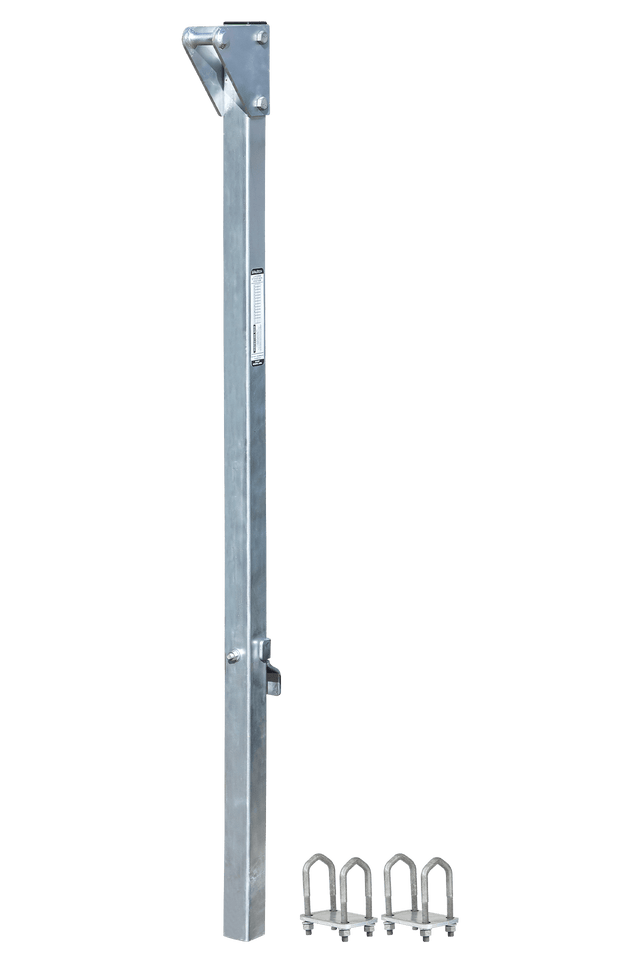

5' Bolt-on Ladder Stanchion Anchor with 5" Overhead Offset (6160505)

Features

• Fully galvanized structural steel post, hardware, and fasteners for durable performance
• Included hardware and fasteners allow for quick and easy install to a wide variety of fixed ladders.
• Can be installed in the middle of ladder or off to one side for maximum access at top of ladder
• 5' and 10' post heights maintain overhead anchorage for ladders that lead up to or extend past the walking-working surface
• 5" offset optimal for harness front D-ring attachment or ladders located in close quarters, cages, or confined spaces
• For permanent installation onto fixed ladders of various types and sizes.
• For use in personal fall arrest applications
• Optional rung reinforcements available for attachment to hollow rung ladders
• Meets OSHA 1926.502 and 1910.140 regulations


Material Specifications

• Post: Galvanized and powder coated steel


• Anchor Bracket: Galvanized and powder coated steel


• Mounting Hardware: Galvanized and powder coated steel

Performance Specifications

• Static Strength: 3,600 lbs min.


• ANSI User Capacity: One user up to 310 lb max.


• OSHA User Capacity: Allowable up to 425 lb max.

Compliant With

OSHA 1926.502 and 1910.140
