Heavy Duty Twin Basket Beam

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Designed to be used with lifting slings in a basket hitch
  • Two sets of lifting sling hooks are standard
  • Custom configurations available - call for ordering assistance
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • All dimensions in inches unless otherwise noted.

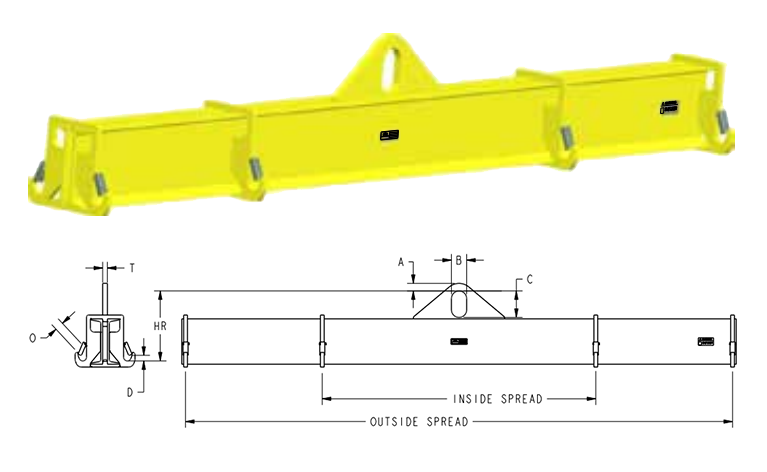

MPN WLL Pick Points(Outside Spread) Pick Points(Inside Spread) Headroom (in) A B C T O D Weight (lbs) Price Quantity
25646 10,000 48 26 18.5 2 4 7 1.25 1.8 1.7 425 $5,041.23
25647 10,000 96 48 18.5 2 4 7 1.25 1.8 1.7 665 $6,091.75
25648 10,000 144 72 18.5 2 4 7 1.25 1.8 1.7 905 $6,941.83
25649 10,000 192 96 18.5 2 4 7 1.25 1.8 1.7 1150 $8,092.58
25650 10,000 240 120 18.5 2 4 7 1.25 1.8 1.7 1395 $8,942.66
25651 15,000 48 26 21.2 2 4 7 1.25 1.9 1.7 610 $6,402.48
25652 15,000 96 48 21.2 2 4 7 1.25 1.9 1.7 885 $7,705.03
25653 15,000 144 72 21.2 2 4 7 1.25 1.9 1.7 1155 $8,907.35
25654 15,000 192 96 21.2 2 4 7 1.25 1.9 1.7 1425 $12,814.62
25655 15,000 240 120 21.2 2 4 7 1.25 1.9 1.7 1695 $13,093.34
25656 20,000 48 26 18.9 2 4 7 1.25 1.9 1.7 810 $7,968.21
25657 20,000 96 48 18.9 2 4 7 1.25 1.9 1.7 1160 $8,958.85
25658 20,000 144 72 18.9 2 4 7 1.25 1.9 1.7 1510 $9,497.57
25659 20,000 192 96 18.9 2 4 7 1.25 1.9 1.7 1860 $13,885.09
25660 20,000 240 120 18.9 2 4 7 1.25 1.9 1.7 2215 $15,118.16
