Glass Panel Lifting Beams

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • All dimensions in inches unless otherwise noted.
  • Used to lift wood cased glass or glass panels or similar material when used with proper slings.

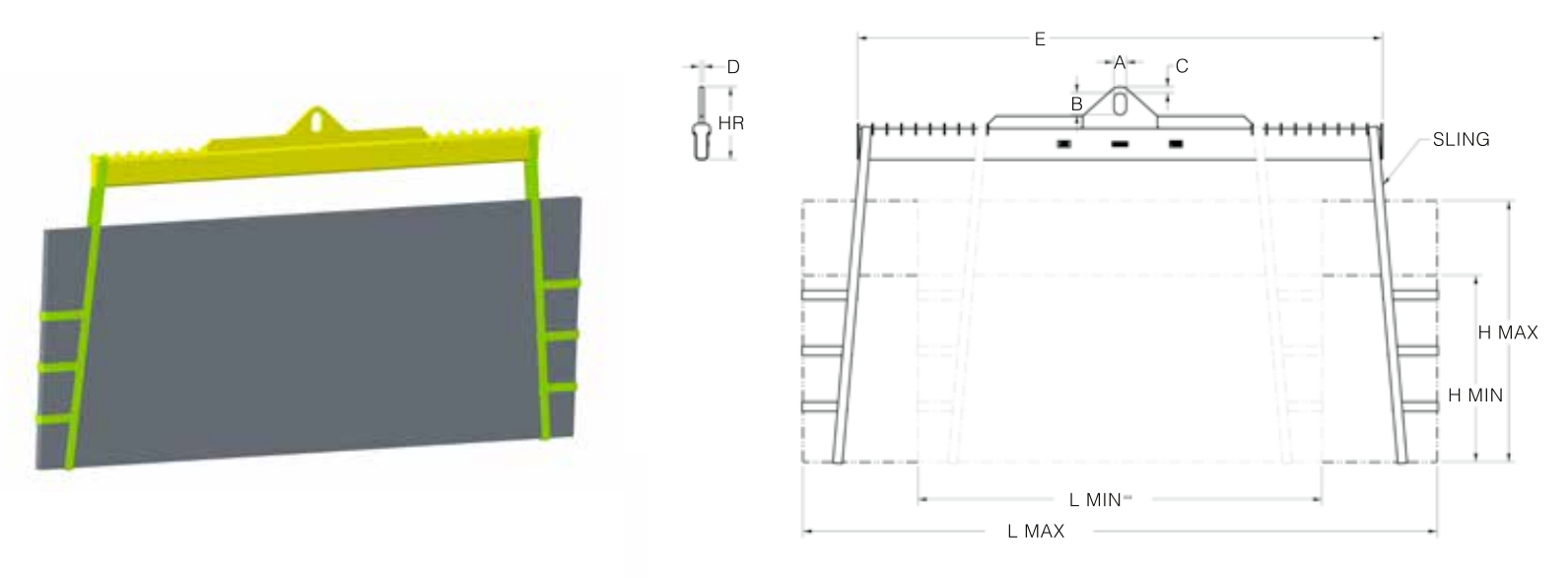

MPN WLL Panel Length (L) Min Panel Length (L) Max A B C D E Hr (in) Weight (lbs) Price Quantity
22875 5,000 88 144 3 5 1.25 1 109 15 315 $2,620.94
22876 10,000 130 204 4 7 2 1.25 169 24 795 $5,145.31

Products

Lifting Sling for Glass Panels - Sold as each, 2 Needed to Lift

MPN WLL Panel Height (H) Min Panel Height (H) Max Price Quantity
22877 6,000 36 54 $924.22
22878 6,000 60 84 $1,089.76
22879 6,000 72 100 $1,131.14
22880 6,000 100 130 $1,227.70
