Fixed Spreader Beams

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Spreader Beams shipped with proof load certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Standard with swivel latch hooks. Top rigging not included - please call for pricing
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • Minimum horizontal top rigging angle of 45°.
  • Ideally suited for adding stability to critical lifts.

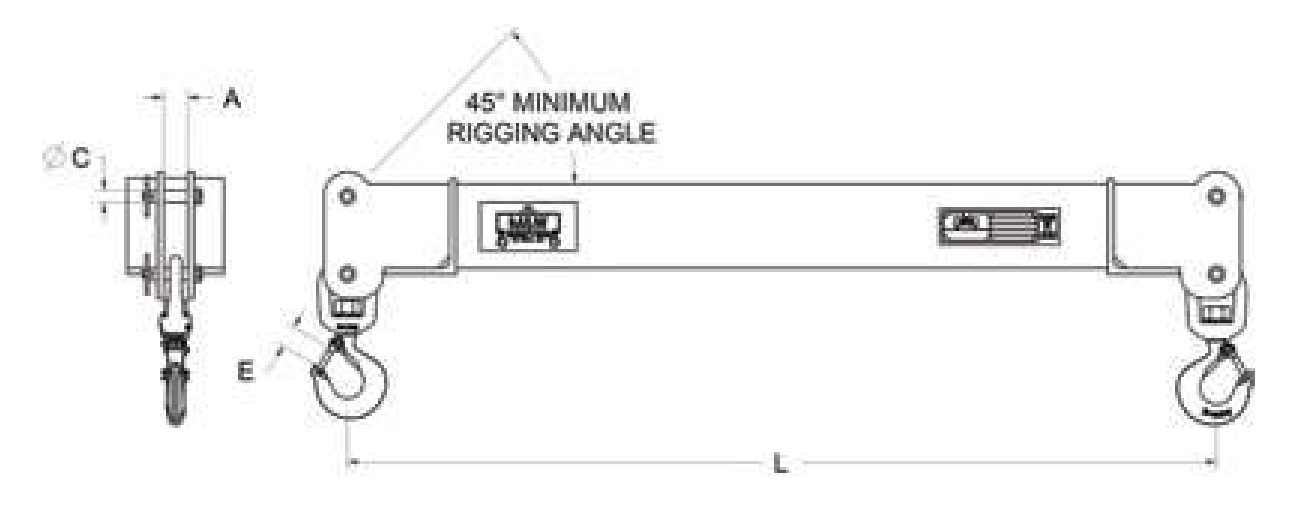

WLL MPN Outside Spread (L) Headroom (in) Weight (lbs) A (in) C (in) E (in) Price Quantity
4,000 13094 4' 7.37 55 1.00 0.50 0.89 $1,329.52
4,000 13097 6' 7.37 75 1.00 0.50 0.89 $1,401.77
4,000 13100 8' 8.12 95 1.00 0.50 0.89 $1,589.64
4,000 13103 10' 8.12 115 1.00 0.50 0.89 $1,632.99
4,000 13106 12' 8.12 135 1.00 0.50 0.89 $1,734.15
4,000 13109 16' 8.12 180 1.00 0.50 0.89 $1,950.92
4,000 13112 20' 8.12 218 1.00 0.50 0.89 $2,109.89
4,000 24473 25' 9.0 380 1.00 0.50 0.89 $2,395.33
4,000 24474 30' 9.1 455 1.00 0.50 0.89 $2,635.91
10,000 13116 4' 8.23 75 1.31 0.75 1.08 $1,589.64
10,000 13119 6' 8.98 105 1.31 0.75 1.08 $1,661.90
10,000 13122 8' 8.98 135 1.31 0.75 1.08 $1,705.25
10,000 13125 10' 8.98 165 1.31 0.75 1.08 $1,849.76
10,000 13128 12' 9.98 195 1.31 0.75 1.08 $2,326.65
10,000 13131 16' 9.98 255 1.31 0.75 1.08 $2,644.58
10,000 13134 20' 9.98 315 1.31 0.75 1.08 $2,948.06
10,000 24475 25' 11.0 578 1.31 0.75 1.08 $3,028.16
10,000 24476 30' 11.3 690 1.31 0.75 1.08 $3,375.95
20,000 13138 4' 9.25 125 1.66 1.00 1.31 $1,994.28
20,000 13141 6' 11.00 165 1.66 1.00 1.31 $2,239.95
20,000 13144 8' 11.00 210 1.66 1.00 1.31 $2,355.56
20,000 13147 10' 11.00 255 1.66 1.00 1.31 $2,471.17
20,000 13150 12' 11.00 300 1.66 1.00 1.31 $2,586.78
20,000 13153 16' 12.00 385 1.66 1.00 1.31 $3,511.66
20,000 13156 20' 12.00 475 1.66 1.00 1.31 $3,858.49
20,000 24477 25' 13.0 895 1.66 1.00 1.31 $4,544.86
20,000 24478 30' 13.0 1065 1.66 1.00 1.31 $5,099.23
