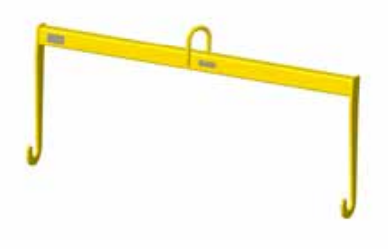

Fixed Roll Lifting Beams

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Beams supplied standard with alloy swivel latch hook connections.

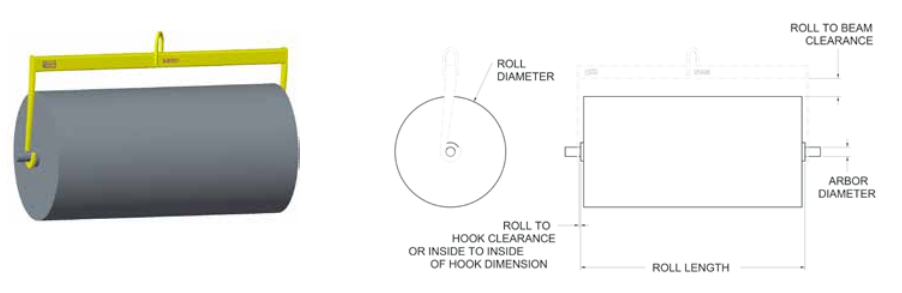

WLL MPN Max Roll Diameter Max Arbor Diameter Inside Length Weight (lbs) Price Quantity
2,000 20715 36 3 50 75 $1,531.18
2,000 20716 36 3 73 105 $1,558.77
4,000 20717 36 3 50 115 $2,220.90
4,000 20718 36 3 74 154 $2,524.37

Products

WLL MPN Max Roll Diameter Max Arbor Diameter Inside Length Weight (lbs) Price Quantity
6,000 20721 36 3 50 200 $3,007.18
6,000 20722 36 3 74 245 $3,089.94
10,000 20719 36 3 50 370 $4,372.82
10,000 20720 36 3 74 450 $4,841.83

Products

WLL MPN Max Roll Diameter Max Arbor Diameter Inside Length Weight (lbs) Price Quantity
6,000 20756 36 3 50 205 $3,324.45
6,000 20755 36 3 74 255 $3,476.19
10,000 20754 36 3 50 360 $3,765.87
10,000 20753 36 3 74 440 $4,221.09
