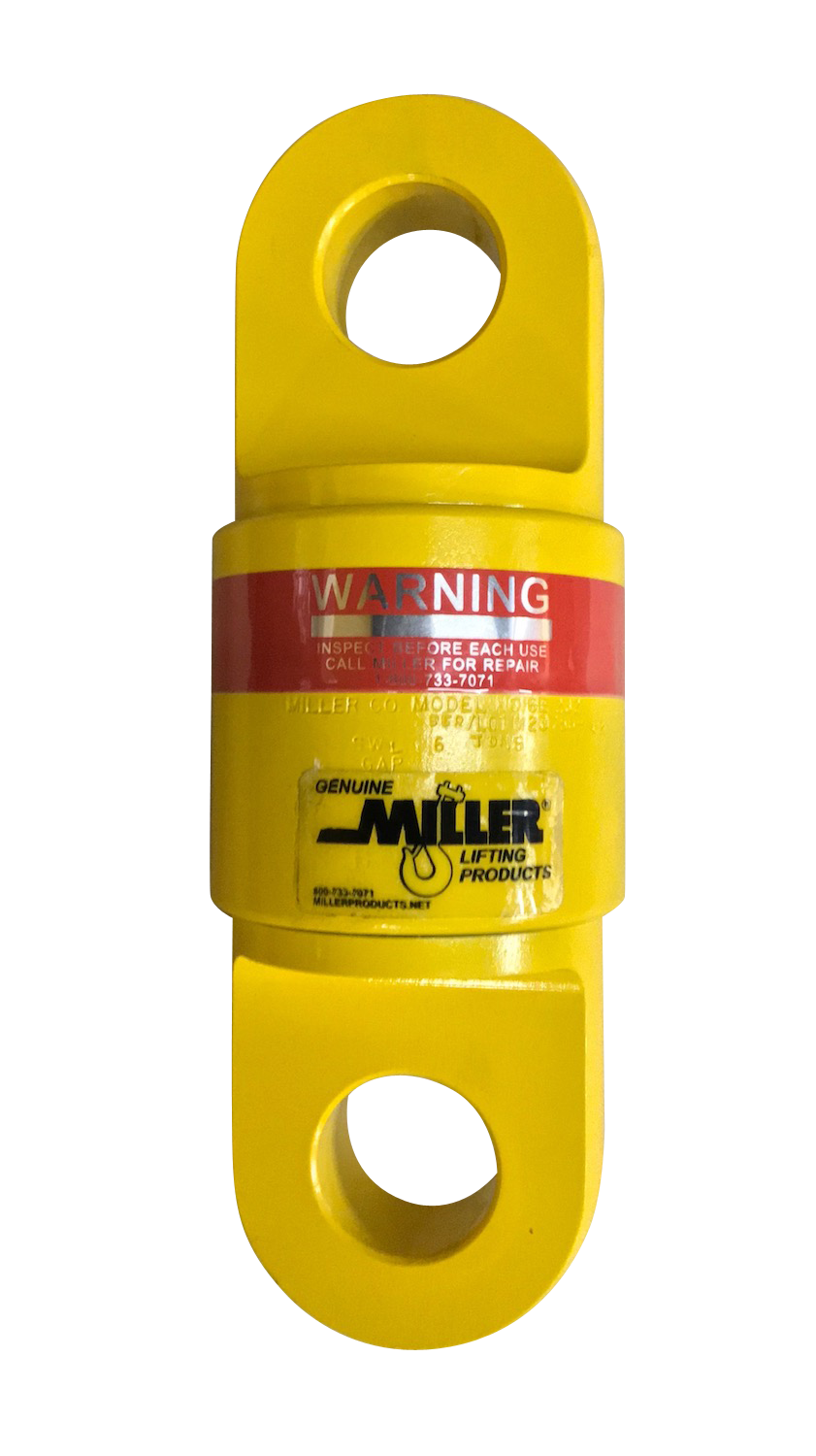

Eye to Eye – Type 282

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	Weight (lbs)	Price	Quantity
Miller Econo-Link Thrust Bearing Swivel Model 3E282 Eye to Eye WLL 3 tons	3	3E282	1/2	2.63	5.65	7.90	1.13	1.00	1.06	1.13	6.3	$638.00

Miller Econo-Link Thrust Bearing Swivel Model 6E282 Eye to Eye WLL 6 tons	6	6E282	5/8	3.34	6.91	9.91	1.50	1.19	1.41	1.38	12.4	$891.00

Miller Econo-Link Thrust Bearing Swivel Model 10E282 Eye to Eye WLL 10 tons	10	10E282	3/4	3.75	9.66	12.91	1.63	1.44	1.66	2.38	20.6	$1,639.00

Miller Econo-Link Thrust Bearing Swivel Model 15E282 Eye to Eye WLL 15 tons	15	15E282	1	4.13	11.31	15.06	1.88	1.94	2.06	2.63	31.8	$2,079.00

Products

Working Load Limit (ton): 3

MPN: 3E282

Rope Size: 1/2

A: 2.63

B: 5.65

C: 7.90

D: 1.13

E: 1.00

F: 1.06

G: 1.13

Weight (lbs): 6.3

Price:$638.00

Working Load Limit (ton): 6

MPN: 6E282

Rope Size: 5/8

A: 3.34

B: 6.91

C: 9.91

D: 1.50

E: 1.19

F: 1.41

G: 1.38

Weight (lbs): 12.4

Price:$891.00

Working Load Limit (ton): 10

MPN: 10E282

Rope Size: 3/4

A: 3.75

B: 9.66

C: 12.91

D: 1.63

E: 1.44

F: 1.66

G: 2.38

Weight (lbs): 20.6

Price:$1,639.00

Working Load Limit (ton): 15

MPN: 15E282

Rope Size: 1

A: 4.13

B: 11.31

C: 15.06

D: 1.88

E: 1.94

F: 2.06

G: 2.63

Weight (lbs): 31.8

Price:$2,079.00
