Economy H-Beam

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • All dimensions in inches unless otherwise noted.
  • Standard with Shackles

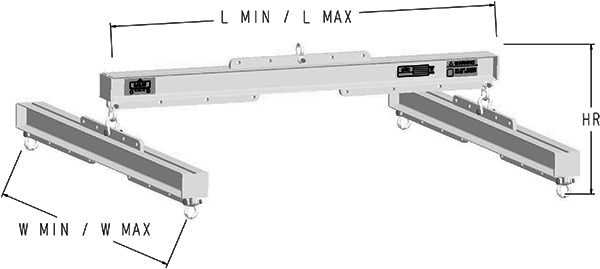

MPN WLL Headroom (in) Weight (lbs) Lower Beams W min / W max Top Beam L Min / L max Price Quantity
17560 1,000 LB 15.1 135 12"-48" 12"-48" $4,027.96
17563 1,000 LB 15.1 150 12"-48" 36"-72" $4,110.73
17566 1,000 LB 16.1 185 12"-48" 60"-96" $4,221.09
17561 1,000 LB 15.1 165 36"-72" 12"-48" $4,193.50
17564 1,000 LB 15.1 180 36"-72" 36"-72" $4,248.67
17567 1,000 LB 16.1 215 36"-72" 60"-96" $4,359.03
17562 1,000 LB 15.1 195 60"-96" 12"-48" $4,248.67
17565 1,000 LB 15.1 210 60"-96" 36"-72" $4,317.65
17568 1,000 LB 16.1 245 60"-96" 60"-96" $4,455.59
17569 2,000 LB 16.1 150 12"-48" 12"-48" $4,110.73
17572 2,000 LB 17.1 180 12"-48" 36"-72" $4,221.09
17575 2,000 LB 17.1 250 12"-48" 60"-96" $4,483.18
17570 2,000 LB 17.1 170 36"-72" 12"-48" $4,248.67
17573 2,000 LB 17.1 200 36"-72" 36"-72" $4,359.03
17576 2,000 LB 18.1 340 36"-72" 60"-96" $4,607.33
17571 2,000 LB 17.1 240 60"-96" 12"-48" $4,538.36
17574 2,000 LB 17.1 270 60"-96" 36"-72" $4,579.74
17577 2,000 LB 18.1 340 60"-96" 60"-96" $4,841.83
17578 4,000 LB 18.1 185 12"-48" 12"-48" $4,400.41
17582 4,000 LB 19.1 245 12"-48" 36"-72" $4,676.30
17586 4,000 LB 20.1 360 12"-48" 60"-96" $5,103.93
17590 4,000 LB 20.1 415 12"-48" 84"-120" $5,241.87
17579 4,000 LB 19.1 255 36"-72" 12"-48" $4,579.74
17583 4,000 LB 19.1 285 36"-72" 36"-72" $4,841.83
17587 4,000 LB 21.1 400 36"-72" 60"-96" $5,297.05
17591 4,000 LB 21.1 455 36"-72" 84"-120" $5,407.40
17580 4,000 LB 19.1 365 60"-96" 12"-48" $5,103.93
17584 4,000 LB 19.1 425 60"-96" 36"-72" $5,366.02
17588 4,000 LB 20.1 540 60"-96" 60"-96" $5,821.24
17592 4,000 LB 20.1 595 60"-96" 84"-120" $5,917.80
17581 4,000 LB 19.1 425 84"-120" 12"-48" $5,366.02
17585 4,000 LB 19.1 485 84"-120" 36"-72" $5,628.11
17589 4,000 LB 21.1 600 84"-120" 60"-96" $6,097.12
17593 4,000 LB 21.1 655 84"-120" 84"-120" $6,193.68
17598 8,000 LB 25.6 305 12"-48" 24"-72" $5,628.11
17602 8,000 LB 25.6 410 12"-48" 48"-96" $5,890.21
17606 8,000 LB 25.6 565 12"-48" 72"-120" $6,345.42
17599 8,000 LB 26.6 425 36"-72" 24"-72" $6,193.68
17603 8,000 LB 26.6 530 36"-72" 48"-96" $6,455.78
17607 8,000 LB 26.6 685 36"-72" 72"-120" $6,869.61
17600 8,000 LB 27.6 655 60"-96" 24"-72" $7,104.11
17604 8,000 LB 27.6 760 60"-96" 48"-96" $7,380.00
17608 8,000 LB 27.6 915 60"-96" 72"-120" $7,793.83
17601 8,000 LB 27.6 765 84"-120" 24"-72" $7,311.03
17605 8,000 LB 27.6 870 84"-120" 48"-96" $7,573.12
17609 8,000 LB 27.6 1,025 84"-120" 72"-120" $7,973.16
