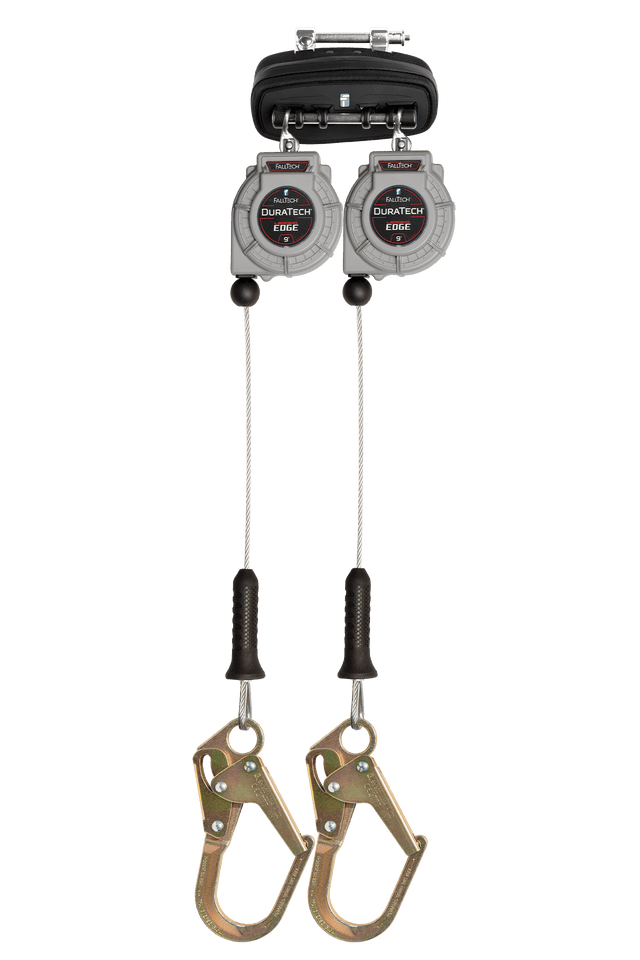

9' DuraTech® Leading Edge Personal SRL with Steel Mini Rebar Hooks (83909TP0)

Features

• Proprietary aluminum alloy dorsal connector provides simplified push button attachment
• Exclusive energy absorber design with nylon fused EVA cover limits user back discomfort.
• Constant-force main spring produces smooth lifeline payout and retraction
• Calibrated pawl locking system delivers ideal walking speed without nuisance lock-up
• Lightweight and impact resistant nylon polymer housing provides greater durability
• Versatile anchorage range from overhead up to 5' below user's dorsal D-ring
• 3/16" galvanized steel cable lifelines with plated alloy steel mini rebar hooks
• Rebar hooks feature transverse load rated gates
• Mini rebar hooks feature 2" gate opening and reduced weight
• Complies with ANSI Z359.14-2014


Material Specifications

• Cable: 3/16" galvanized steel; 3,400 lb min. static strength
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Aluminum alloy; 3,000 lb min.

Performance Specifications

• Static Strength: 3,600 lb min.
• ANSI SRL Class: Class B
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

Compliant With:
