Custom Spreader Beam End Cap Kits

  • Manufactured to exceed all ASME B30.20 and OSHA regulations when assembled to specifications using A53 Grade B Schedule 40 pipe.
  • Painted safety yellow for increased visibility.
  • ALL End Caps shipped with proof load certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • Top rigging available - call for details.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.

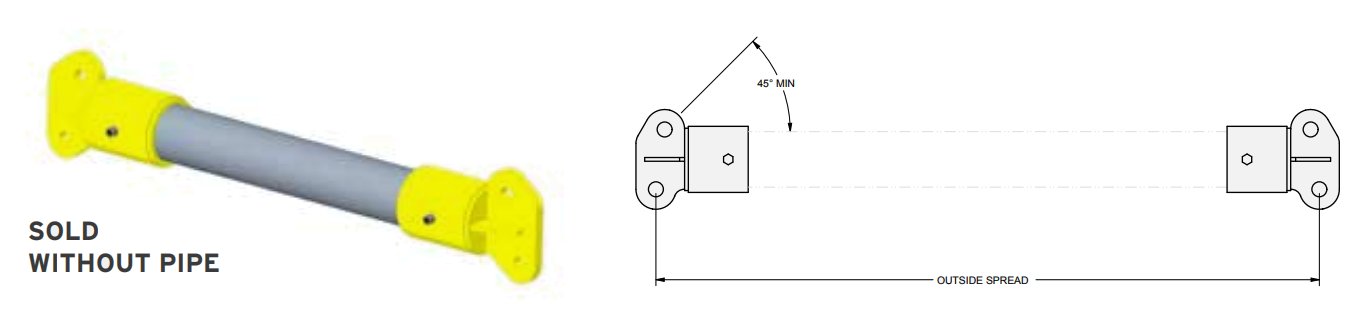

  • Minimum horizontal top rigging angle of 45° - M&W recommends a minimum angle of 60°.
  • Pipe Sold Separately
  • * Sold in pairs / rated as pair.
MPN Pipe Size Top Shackle Min Top Shackle Max Bottom Shackle Min Bottom Shackle Max Weight (lbs) Price Quantity
19499 2-1/2" 1/2" 7/8" 1/2" 7/8" 28/pair $1,401.77
19500 5" 3/4" 1-1/4" 3/4" 1-1/4" 50/pair $2,745.74
19120 8" 1" 1-3/4" 1" 1-1/2" 288/pair $4,147.52

Products

End Caps
Outside Spread in Feet/WLL in Pounds

MPN Pipe Size 4' 5' 6' 8' 10' 12' 14' 15' 16' 18' 20' 22' 24' 26' 28' 30' 32' 34' 36' Price Quantity
19499 2 1/2" 15,000 14,000 13,000 11,000 8,000 5,800 4,000 3,000 $1,589.64
19500 5" 34,000 34,000 34,000 34,000 34,000 32,000 30,000 28,000 26,000 24,000 20,000 16,000 14,000 12,000 10,000 9,000 $3,208.18
19120 8" 78,000 78,000 78,000 78,000 78,000 76,000 76,000 72,000 70,000 66,000 62,000 58,000 54,000 50,000 46,000 42,000 38,000 32,000 30,000 $5,173.56

Products

MPN: 19499
Pipe Size: 2 1/2"
4':
5':
6':
8':
10':
12':
14':
15':
16':
18':
20':
22':
24':
26':
28':
30':
32':
34':
36':
Price:$1,589.64
MPN: 19500
Pipe Size: 5"
4':
5':
6':
8':
10':
12':
14':
15':
16':
18':
20':
22':
24':
26':
28':
30':
32':
34':
36':
Price:$3,208.18
MPN: 19120
Pipe Size: 8"
4':
5':
6':
8':
10':
12':
14':
15':
16':
18':
20':
22':
24':
26':
28':
30':
32':
34':
36':
Price:$5,173.56

A53 Grade B Schedule 40

MPN A53 Grade B Schedule 40 A B Dia C Price Quantity
19499 2 1/2" 2.75 4 0.69 $1,589.64
19500 5" 3.25 4 0.69 $3,208.18
19120 8" 7 6 1.06 $5,173.56

Products

ORDERING INFORMATION

End cap kits are sold in pairs for models 19499, 19500 and 19120. Each cap kit comes complete with retaining bolts, capacity tags, and individual proof load certifications. End cap kits are proof tested and serial numbered in pairs.

Complete spreader beams can be ordered from the chart above in standard lengths. For example, a 10’ spreader beam with 39 tons Working Load Limit capacity would use the 19120 end cap kits and would be supplied assembled with the proper A53 Grade B, Schedule 40 pipe. The pipe would also be tagged and serial numbered. From the chart above, the user would order part number 19120-120. Complete spreader beams are also shipped with individual proof load certification paperwork.

* Minimum horizontal top rigging angle is 45° on all fixed and adjustable spreaders.
M&W recommends a minimum horizontal top rigging angle of 60°.
