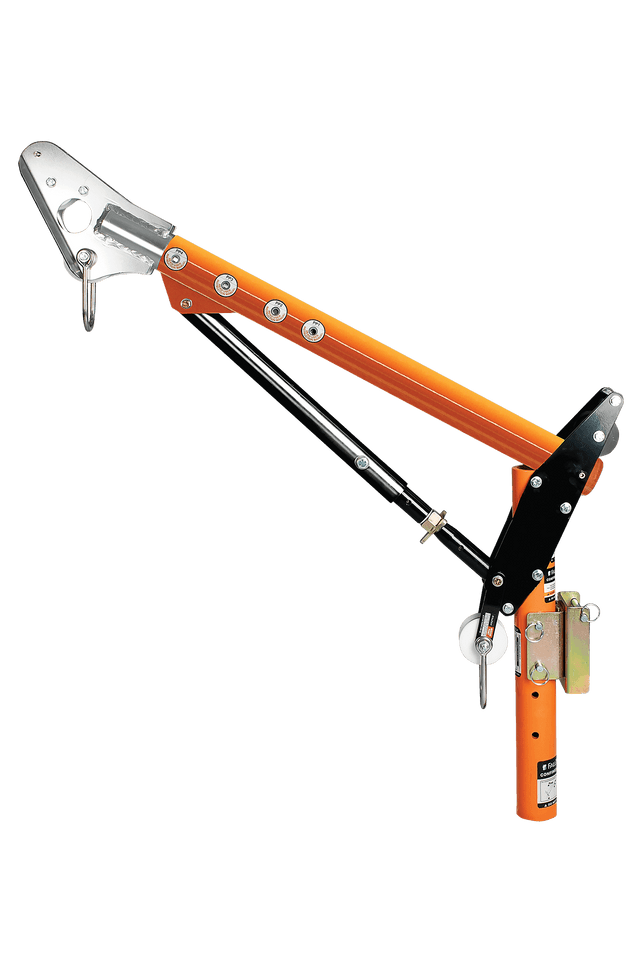

Offset Davit Arm, 24" to 44" with Device Receiver Bracket (6500244)
by Falltech

Offset Davit Arm, 24" to 44" with Device Receiver Bracket (6500244)

$3,498.50 - $3,498.50
$3,498.50
$3,498.50 - $3,498.50
$3,498.50

Features

  • Telescoping adjustability from 12" to 29" offset reach keeps lifelines correctly centered over access locations
  • Features primary and secondary pulleys for use with multiple devices.
  • Includes integral secondary 5,000 lb anchor point for Fall Arrest applications
  • Device Receiver Bracket included for attaching properly rated FallTech devices
  • Modular design allows custom assembly with lower masts and functional bases to suit your site-specific needs
  • Lightweight powder coated aluminum combined with alloy steel for long life and durability
  • Meets OSHA 1926.502 and 1910.66 regulations only when used with davit bases and mast extensions

Material Specifications

  • Davit System: Powder coated 6061 aluminum and plated steel

Performance Specifications

  • Rescue Static Strength: 5,000 lb min.

  • Entry/Egress Static Strength: 1,800 lb min.

  • Rescue User Capacity: 2 users, 310 lb max. for each person

  • Entry/Egress Capacity: 1 user, 310 lb max.

Compliant With:

OSHA 1926.502 and 1910.66 when used in a complete system
