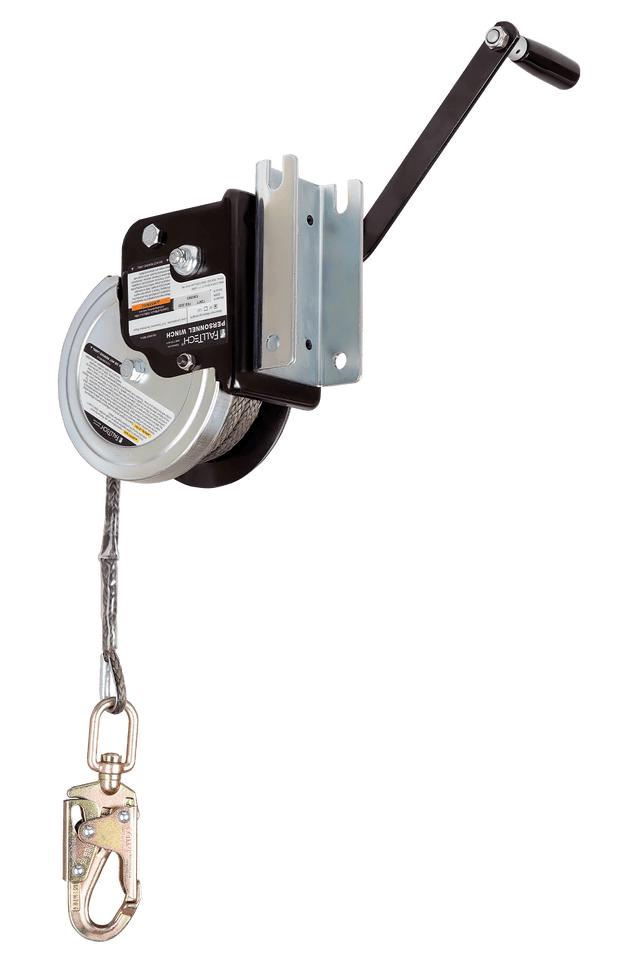

60' FallTech® Personnel Winch for Tripods and Davits with Technora® Rope (7297T)

Features

• Single user mechanical Winch for entering and exiting confined spaces
• 1/4" Technora® synthetic rope line constituent includes alloy steel swivel snaphook.
• Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
• Secondary braking system provides added safety in case of primary brake failure
• Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
• Includes 20" weather-resistant storage bag and integral mounting bracket for tripods and davits
• Separate leg brackets 7291A and 7291B for Tripod mounting and 65101DU for Davit mounging may be required
• Winch is not intended for Material Handling purposes
• Complies with ANSI Z359.4-2013 and Z117.1-2016

Material Specifications

• Cable: 1/4" Technora® rope; 4,500 lb min. static strength
• Lifeline Connector: Zinc plated alloy steel; min. 5,000 lb Tensile Strength with 3,600 lb Gate Strength
• Drive and Drum Gears: Alloy steel
• Integral Bracket: Zinc plated alloy steel

Performance Specifications

• Static Strength: 3,100 lb min.
• Handle Operation Force: 30 lb max.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

Compliant With:
