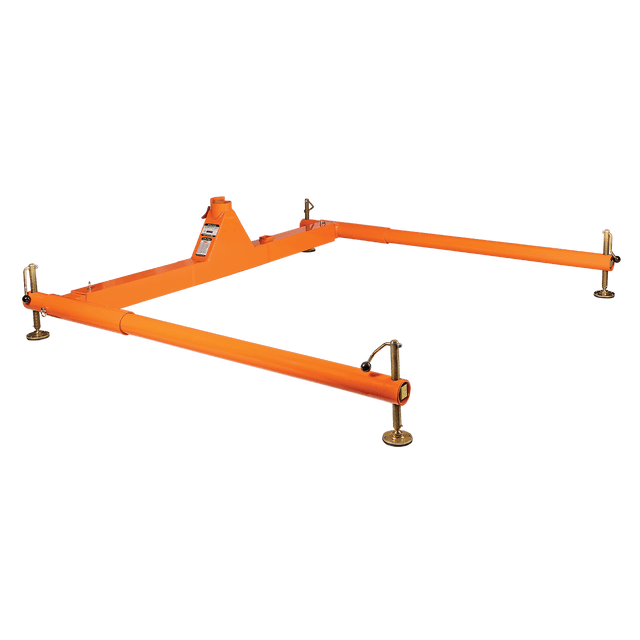

3pc Portable Davit Base for 24" to 44" Systems (6500844)

Features

• Base width adjusts from 73" to 100" to fit a wide range of openings
• Modular design compatibility with offset davit arms and mast extensions.
• 3pc base includes integral bullseye level and tool-free height adjustment
• Lightweight powder coated aluminum combined with alloy steel for long life and durability
• Meets OSHA 1926.502 and 1910.66 regulations only when used with offset davit arms and mast extensions


Material Specifications

• Portable Base: Powder coated 6061 aluminum and plated steel


• Sleeve Insert: PVC pipe

Performance Specifications

• Rescue Static Strength: 5,000 lb min.


• Entry/Egress Static Strength: 1,800 lb min.


• Rescue User Capacity: 2 users, 310 lb max. for each person


• Entry/Egress Capacity: 1 user, 310 lb max.

Compliant With:
