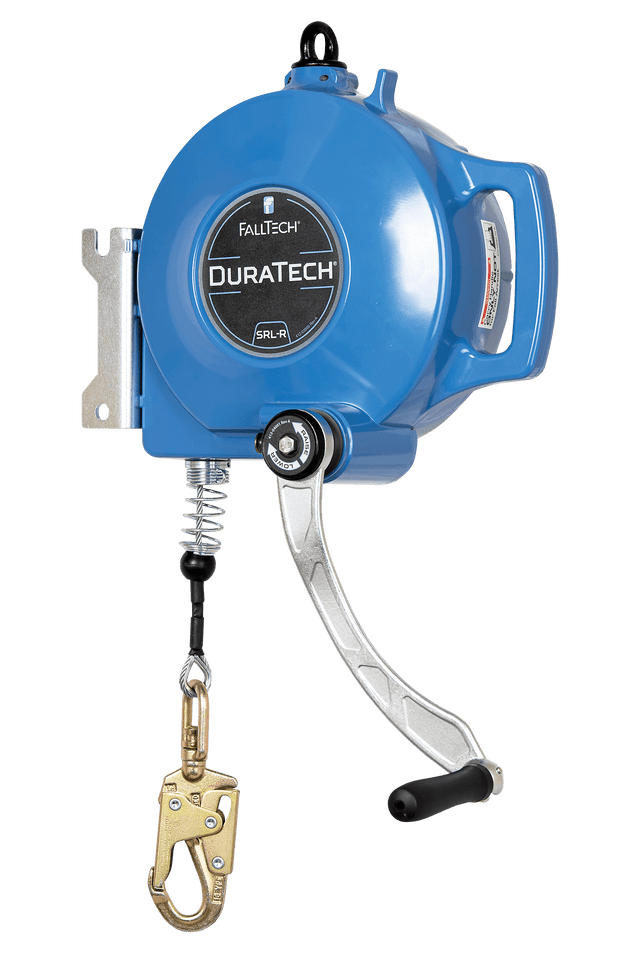

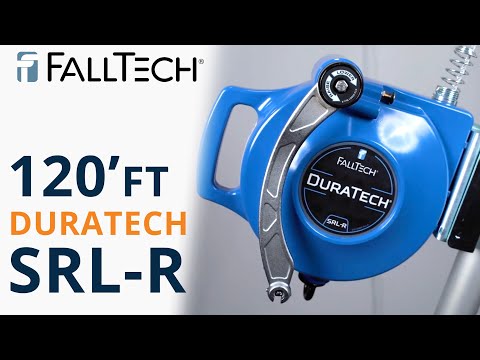

120' DuraTech® 3-way SRL-R with Galvanized Steel Cable for Tripods and Davits (7278)

Features

• Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue
• Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
• 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
• Features integrated proprietary mounting bracket for tripods and davits
• Complies with ANSI Z359.14-2021 Class 1 SRL-R


Material Specifications

• ANSI User Capacity: 130 to 310 lb max.


• OSHA User Capacity: 130 to 310 lb max.


• Cable: 3/16" galvanized steel; 3,600 lb min. static strength


• Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength


• Housing and Drum: Machined aluminum alloy

Performance Specifications

• Static Strength: 3,600 lb min.


• ANSI SRL Class/Type: Class 1 SRL-R


• Avg. Arrest Force: 1,350 lb


• Max. Arrest Force: 1,800 lb


• Max. Arrest Distance: 42"

Compliant With:
