Combo Lifting Beams

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Quick and easy adjustment of unbalanced loads.
  • Swivel hooks available - call for ordering assistance.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • * Sold without shackles, hooks or top rigging

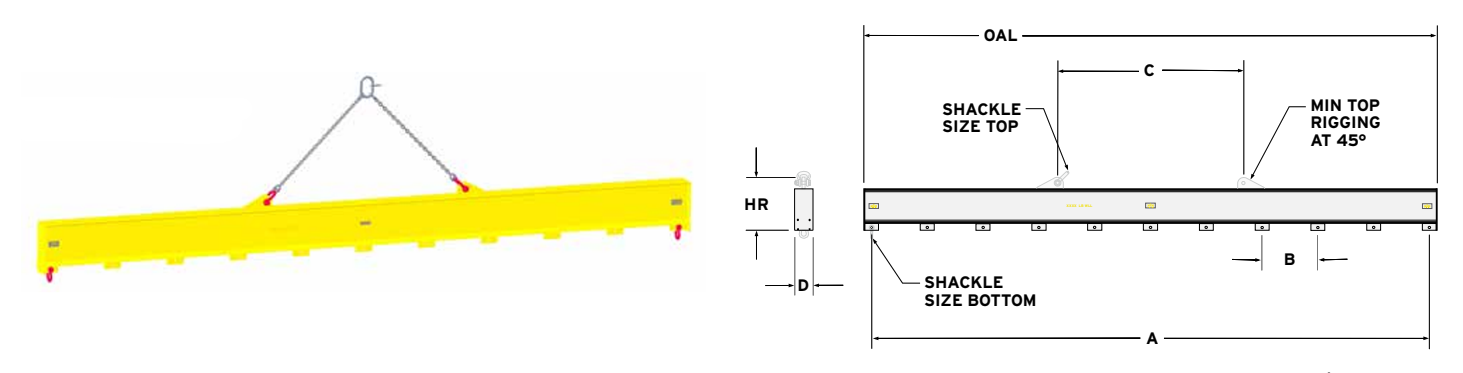

WLL MPN A B C D Overall Length (OAL) HR (in) Top Shackle Size Bottom Shackle Size Optional Top Rigging PN Price Quantity
4,000 26111 120 24” 60” 6.75” 126.5” 16.03” 1/2” 1/2” 26358 $2,390.08
4,000 26112 240 24” 80” 6.75” 246.5” 16.03” 1/2” 1/2” 26358 $5,441.13
4,000 26113 360 24” 120” 6.75” 366.5” 16.06” 1/2” 1/2” 26359 $9,049.83
6,000 26114 120 24” 60” 7.5” 126.5” 17.72” 3/4” 5/8” 26360 $292.82
6,000 26115 240 24” 80” 7.5” 246.5” 17.72” 3/4” 5/8” 26360 $6,299.32
6,000 26116 360 24” 120” 7.5” 366.5” 17.72” 3/4” 5/8” 26361 $9,257.87
10,000 26117 120 24” 60” 7.88” 126.5” 22.94” 7/8” 7/8” 26366 $4,107.67
10,000 26118 240 24” 80” 7.88” 246.5” 22.94” 7/8” 7/8” 26366 $6,943.18
10,000 26119 360 24” 120” 7.88” 366.5” 22.94” 7/8” 7/8” 26367 $12,927.17
20,000 26120 120 24” 60” 7.88” 126.5” 22.94” 1 1/4" 7/8” 26362 $5,824.30
20,000 26121 240 24” 80” 14.6” 247” 25.54” 1 1/4" 7/8” 26362 $11,771.23
20,000 26122 360 24” 120” 14.6” 367” 25.54” 1 1/4" 7/8” 26363 $21,868.87
40,000 26123 120 24” 60” 12.12” 130.75” 25.2” 1 3/4" 1 1/8" 26364 $11,173.47
40,000 26124 240 24” 80” 14.6” 250.75” 28.76” 1 3/4" 1 1/8" 26364 $17,304.30
40,000 26125 360 24” 120” 12.3” 370.75” 37.7” 1 3/4" 1 1/8" 26365 $26,819.52

Products

Optional Top Rigging and Shackles

MPN Product Name Description Price Quantity
26358 Chain Sling Top Rigging 9/32" Do Shackle (26358) Top Rigging for 26111, 26112 $825.73
26359 Chain Sling Top Rigging 9/32" Do Shackle (26359) Top Rigging for 26113 $888.90
26360 Chain Sling Top Rigging 3/8" Do Shackle (26360) Top Rigging for 26114, 26115 $951.77
26361 Chain Sling Top Rigging 3/8" Do Shackle (26361) Top Rigging for 26116 $1,013.28
26366 Chain Sling Top Rigging 1/2" Do Shackle (26366) Top Rigging for 26117, 26118 $1,472.87
26367 Chain Sling Top Rigging 1/2" Do Shackle (26367) Top Rigging for 26119 $1,621.45
26362 Chain Sling Top Rigging 5/8" Do Shackle (26362) Top Rigging for 26120, 26121 $2,194.33
26363 Chain Sling Top Rigging 5/8" Do Shackle (26363) Top Rigging for 26122 $2,326.70
26364 Wire Rope Sling Top Rigging 1 1/4" Wire Rope 2 Leg Bridle (26364) Top Rigging for 26123, 26124 $4,454.22
26365 Wire Rope Sling Top Rigging 1 1/4" Wire Rope 2 Leg Bridle (26365) Top Rigging for 26125 $4,535.95
