Coil Lifter/Upenders

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Coil Lifters proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.

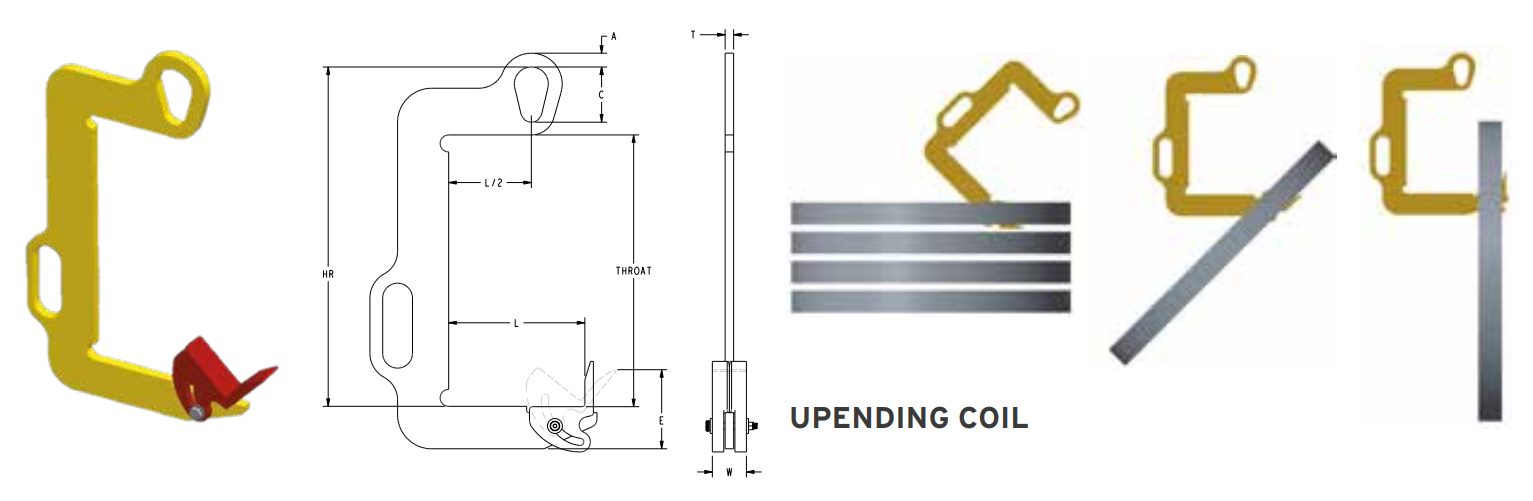

  • Easy horizontal to vertical upending of coils.
WLL MPN Throat (in) Headroom (in) A B C E T W L D Weight (lbs) Price Quantity
1,000 14480 13.0 17.0 0.81 2.00 3.31 4.06 0.50 2.0 6.0 2.25 17 $1,483.27
1,000 14481 13.0 17.0 0.81 2.00 3.31 4.56 0.50 2.0 12.0 2.75 23 $1,670.63
2,000 14482 16.0 20.0 0.81 2.00 3.31 3.89 0.50 2.0 8.0 2.50 20 $1,483.27
4,000 14483 18.0 23.1 1.00 2.63 4.00 5.05 0.75 2.0 10.0 2.75 33 $1,873.60
7,000 14484 20.0 26.3 1.18 3.63 5.31 6.26 1.00 2.5 12.0 3.50 61 $2,357.62
