Clamps

Vertical Lifting Clamps

All steel body for durable strength in a smaller size.
Individually serialized and tested to 2 x WLL. Factory test certification of proof load is included.
For use with materials having surface hardness < HRC 37
Minimum 10% WLL is required to ensure grip (PCUA)
180° turning range for easy positioning or transfer of plates (PCUA)
Lever ensures pre-tensioning and release of grip jaws (PCUA)
Replacement parts kits are available.
Meets: EU Directives: 2006/42/EC and ASME B30.20

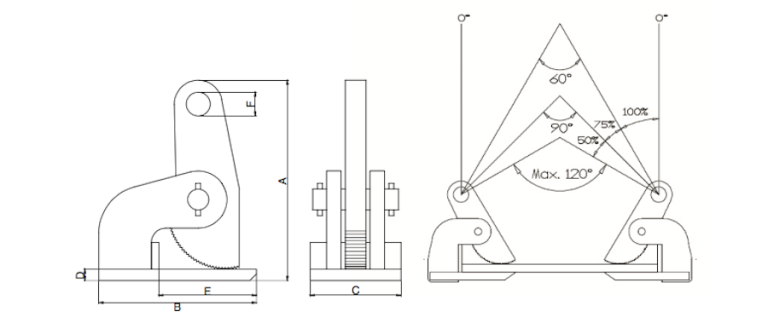

MPN	Working Load Limit (Ton)	Jaw Opening (in.)	A (in.)	B (in.)	C (in.)	D (in.)	E (in.)	F (in.)	Price	Quantity
0.5T Horizontal Plate Lifting Clamp (PCH005)	PCH005	0.5T	0 - 1-3/8"	6.61	5.51	2.56	0.47	3.86	0.79	$127.85

1T Horizontal Plate Lifting Clamp (PCH010)	PCH010	1T	0 - 2-3/8"	10.43	7.09	2.95	0.47	4.33	0.98	$156.08

2T Horizontal Plate Lifting Clamp (PCH020)	PCH020	2T	0 - 2-3/8"	10.43	7.09	3.15	0.63	4.33	0.98	$208.11

3T Horizontal Plate Lifting Clamp (PCH030)	PCH030	3T	0 - 2-3/8"	12.01	8.66	3.54	0.70	5.31	1.18	$272.02

5T Horizontal Plate Lifting Clamp (PCH050)	PCH050	5T	0 - 2-3/8"	12.01	8.66	4.33	0.98	4.92	1.18	$327.02

Products

MPN: PCH005

Working Load Limit (Ton): 0.5T

Jaw Opening (in.): 0 - 1-3/8"

A (in.): 6.61

B (in.): 5.51

C (in.): 2.56

D (in.): 0.47

E (in.): 3.86

F (in.): 0.79

Price:$127.85

MPN: PCH010

Working Load Limit (Ton): 1T

Jaw Opening (in.): 0 - 2-3/8"

A (in.): 10.43

B (in.): 7.09

C (in.): 2.95

D (in.): 0.47

E (in.): 4.33

F (in.): 0.98

Price:$156.08

MPN: PCH020

Working Load Limit (Ton): 2T

Jaw Opening (in.): 0 - 2-3/8"

A (in.): 10.43

B (in.): 7.09

C (in.): 3.15

D (in.): 0.63

E (in.): 4.33

F (in.): 0.98

Price:$208.11

MPN: PCH030

Working Load Limit (Ton): 3T

Jaw Opening (in.): 0 - 2-3/8"

A (in.): 12.01

B (in.): 8.66

C (in.): 3.54

D (in.): 0.70

E (in.): 5.31

F (in.): 1.18

Price:$272.02

MPN: PCH050

Working Load Limit (Ton): 5T

Jaw Opening (in.): 0 - 2-3/8"

A (in.): 12.01

B (in.): 8.66

C (in.): 4.33

D (in.): 0.98

E (in.): 4.92

F (in.): 1.18

Price:$327.02

Universal Lifting Clamps

All steel body for durable strength in a smaller size.
Individually serialized and tested to 2 x WLL. Factory test certification of proof load is included.
For use with materials having surface hardness < HRC 37
Minimum 10% WLL is required to ensure grip (PCUA)
180° turning range for easy positioning or transfer of plates (PCUA)
Lever ensures pre-tensioning and release of grip jaws (PCUA)
Replacement parts kits are available.
Meets: EU Directives: 2006/42/EC and ASME B30.20

MPN	Working Load Limit (Ton)	Jaw Opening (in.)	B (in.)	C (in.)	D (in.)	E (in.)	F (in.)	G (in.)	Price	Quantity
0.5T Universal Vertical Plate Lifting Clamp (PCUA005)	PCUA005	0.5T	0 - 5/8"	1.7	4.2	8.5	1.2	0.4	2.0	$353.28

1T Universal Vertical Plate Lifting Clamp (PCUA010)	PCUA010	1T	0 - 3/4"	2.5	5.7	11.5	1.9	0.5	2.6	$456.51

2T Universal Vertical Plate Lifting Clamp (PCUA020)	PCUA020	2T	0 - 1"	3.1	6.9	14.5	2.7	0.6	3.0	$558.94

3T Universal Vertical Plate Lifting Clamp (PCUA030)	PCUA030	3T	0 - 1-1/8"	3.3	8.1	16.9	2.9	0.8	4.0	$643.65

5T Universal Vertical Plate Lifting Clamp (PCUA050)	PCUA050	5T	0 - 2"	3.9	9.4	18.9	3.1	0.9	4.3	$783.40

Products

MPN: PCUA005

Working Load Limit (Ton): 0.5T

Jaw Opening (in.): 0 - 5/8"

B (in.): 1.7

C (in.): 4.2

D (in.): 8.5

E (in.): 1.2

F (in.): 0.4

G (in.): 2.0

Price:$353.28

MPN: PCUA010

Working Load Limit (Ton): 1T

Jaw Opening (in.): 0 - 3/4"

B (in.): 2.5

C (in.): 5.7

D (in.): 11.5

E (in.): 1.9

F (in.): 0.5

G (in.): 2.6

Price:$456.51

MPN: PCUA020

Working Load Limit (Ton): 2T

Jaw Opening (in.): 0 - 1"

B (in.): 3.1

C (in.): 6.9

D (in.): 14.5

E (in.): 2.7

F (in.): 0.6

G (in.): 3.0

Price:$558.94

MPN: PCUA030

Working Load Limit (Ton): 3T

Jaw Opening (in.): 0 - 1-1/8"

B (in.): 3.3

C (in.): 8.1

D (in.): 16.9

E (in.): 2.9

F (in.): 0.8

G (in.): 4.0

Price:$643.65

MPN: PCUA050

Working Load Limit (Ton): 5T

Jaw Opening (in.): 0 - 2"

B (in.): 3.9

C (in.): 9.4

D (in.): 18.9

E (in.): 3.1

F (in.): 0.9

G (in.): 4.3

Price:$783.40
