Basket Lifting Beam

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Designed to be used with lifting slings in a basket hitch
  • Two sets of lifting sling hooks are standard
  • Hooks designed for 2” eye width
  • Custom configurations available - call for ordering assistance
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • All dimensions in inches unless otherwise noted.

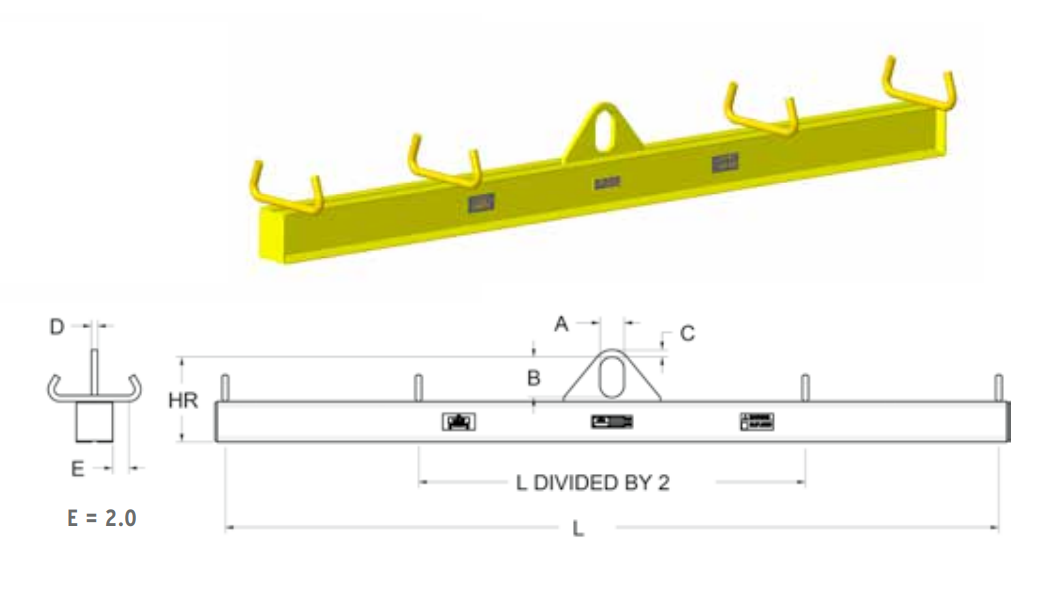

WLL MPN Outside Spread (L) A (in) B (in) C (in) Headroom (in) Weight (lbs) Price Quantity
1,000 17492 4' 3.0 5.0 0.88 9.50 65 $1,531.18
1,000 17493 6' 3.0 5.0 0.88 9.50 80 $1,586.36
1,000 17494 8' 3.0 5.0 0.88 9.50 100 $1,669.12
1,000 17495 10' 3.0 5.0 0.88 9.50 120 $1,738.09
1,000 17496 12' 3.0 5.0 0.88 9.50 205 $2,013.98
1,000 17497 14' 3.0 5.0 0.88 9.50 235 $2,096.75
1,000 17498 16' 3.0 5.0 0.88 10.50 315 $2,331.25
2,000 17499 4' 3.0 5.0 0.88 9.50 65 $1,613.94
2,000 17500 6' 3.0 5.0 0.88 9.50 80 $1,669.12
2,000 17501 8' 3.0 5.0 0.88 10.50 175 $1,903.63
2,000 17502 10' 3.0 5.0 0.88 10.50 210 $1,986.39
2,000 17503 12' 3.0 5.0 0.88 10.50 245 $2,220.90
2,000 17504 14' 3.0 5.0 0.88 11.50 325 $2,441.61
2,000 17505 16' 3.0 5.0 0.88 11.50 370 $2,538.17
4,000 17506 4' 3.0 5.0 0.88 10.50 110 $1,751.89
4,000 17507 6' 3.0 5.0 0.88 10.50 150 $1,889.83
4,000 17154 8' 3.0 5.0 0.88 11.50 210 $2,027.78
4,000 17508 10' 3.0 5.0 0.88 11.50 310 $2,317.46
4,000 17509 12' 3.0 5.0 0.88 12.50 340 $2,524.37
4,000 17510 14' 3.0 5.0 0.88 13.50 580 $3,131.33
4,000 17511 16' 3.0 5.0 0.88 13.50 660 $3,296.86
10,000 17512 4' 4.0 7.0 2.0 16.37 260 $2,952.00
10,000 17513 6' 4.0 7.0 2.0 16.37 340 $3,269.27
10,000 17514 8' 4.0 7.0 2.0 16.37 425 $3,655.52
10,000 17515 10' 4.0 7.0 2.0 17.37 510 $3,917.61
10,000 17516 12' 4.0 7.0 2.0 17.37 720 $4,552.15
10,000 17517 14' 4.0 7.0 2.0 17.37 965 $5,090.13
10,000 16574 16' 4.0 7.0 2.0 17.37 1,090 $5,545.35
