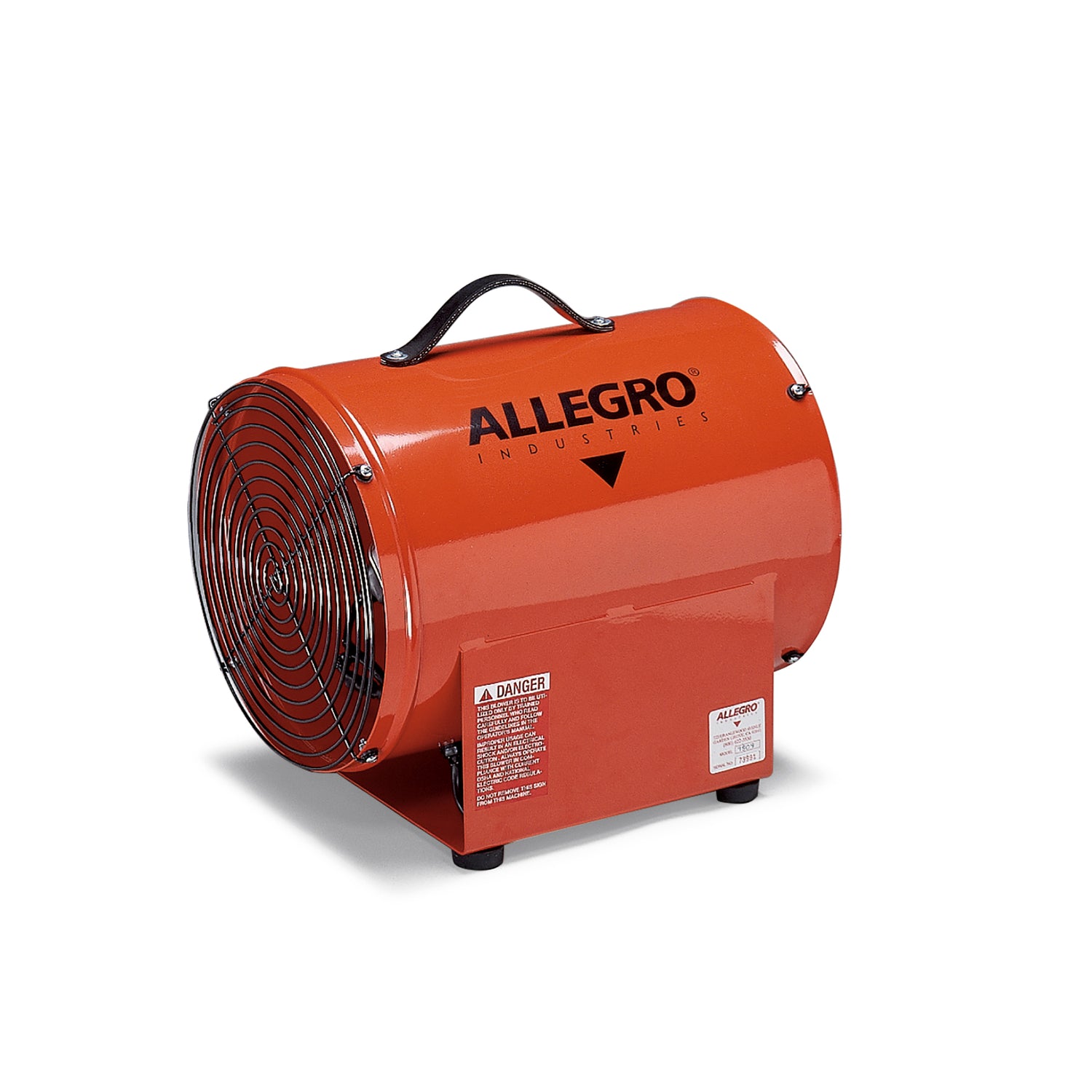

12″ Axial Explosion-Proof (EX) Metal Blower (220V AC/50 Hz). Does NOT meet CSA C22.2 No. 113 requirements. (9509-01E)

Designed for applications requiring larger amounts of air output, the explosion-proof 12î (30.4 cm) Axial Blower offers a 1/3 HP single-phase motor with an efficient three-blade impeller in a rugged and lightweight metal housing. Also included is a NEMA rated 125V plug for use with an explosion-proof socket (sold separately). Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G. Certified to CSA Standard C22.2 No.113. NOTE: Explosion-proof blowers require an explosion-proof socket.

1/3 HP
Available in both US and International wiring configurations
UL Recognized, CSA Certified
Certified to CSA Standard C22.2 No.113.
Powder-coated in "safety orange"
16-gauge cold rolled steel housing
14-gauge steel base
3-ply rubber carrying handle
Made in USA
Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G.
Anti-Static glass reinforced Polyimide (PAGAS) three blade fan with aluminum hub



Power Tools Amps: 1.2 A
PPE Standards: N/A
Blower Motor HP: 1/3
Blower CFM: 1636
Blower M3 per Hour: 2780
Blower M3 per Min: 46
Blower CFM 1 Bend Duct: 1255
Blower M3 per Hour 1 Bend Duct: 2132
Blower CFM 2 Bend Duct: 1156
Blower M3 per Hour 2 Bend Duct: 1964
Blower Electrical Current: 220V AC, 50 Hz
Blower Duct: Not Included
Blower Configuration: EX
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: Yes
Blower Respiratory EU 220V: Yes
Outdoor Rated: N/A
Port Size: 12"
