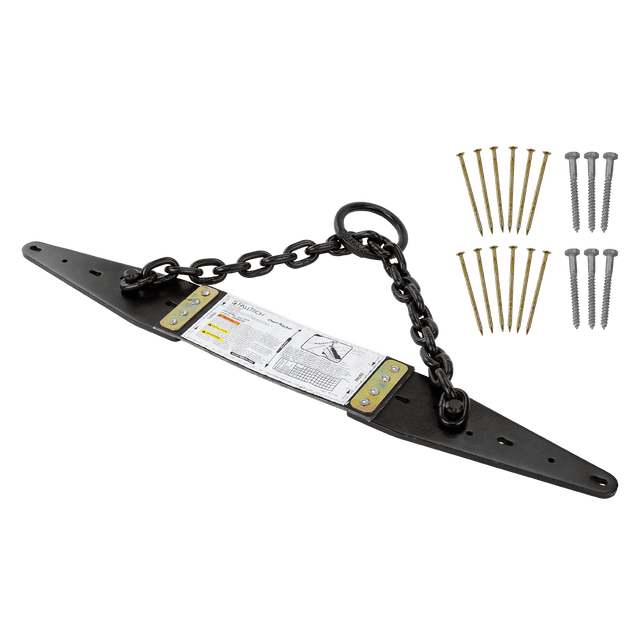

Reusable Heavy Duty Chain Anchor for Wood (7493A)

Features

• Features 9" x 3" anchoring plates, 2-1/4" connecting ring and 5/16" Grade 80 chain
• Bendable plate joiner conforms to flat or sloped surfaces up to 12/12 pitch.
• Includes 16D nails for roof ridge or field installation
• Also includes 2-1/2" lag screws for use with HLLs
• For temporary reusable installation on wood structures
• Meets OSHA 1926.502 regulations


Material Specifications

• Plates: Powder coated carbon steel
• D-ring: Coated alloy steel; 5,000 lb min. static strength
• Chain: 5/16" welded link; 5,000 lb min. static strength

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
