Falltech | SKU:
FT-7530

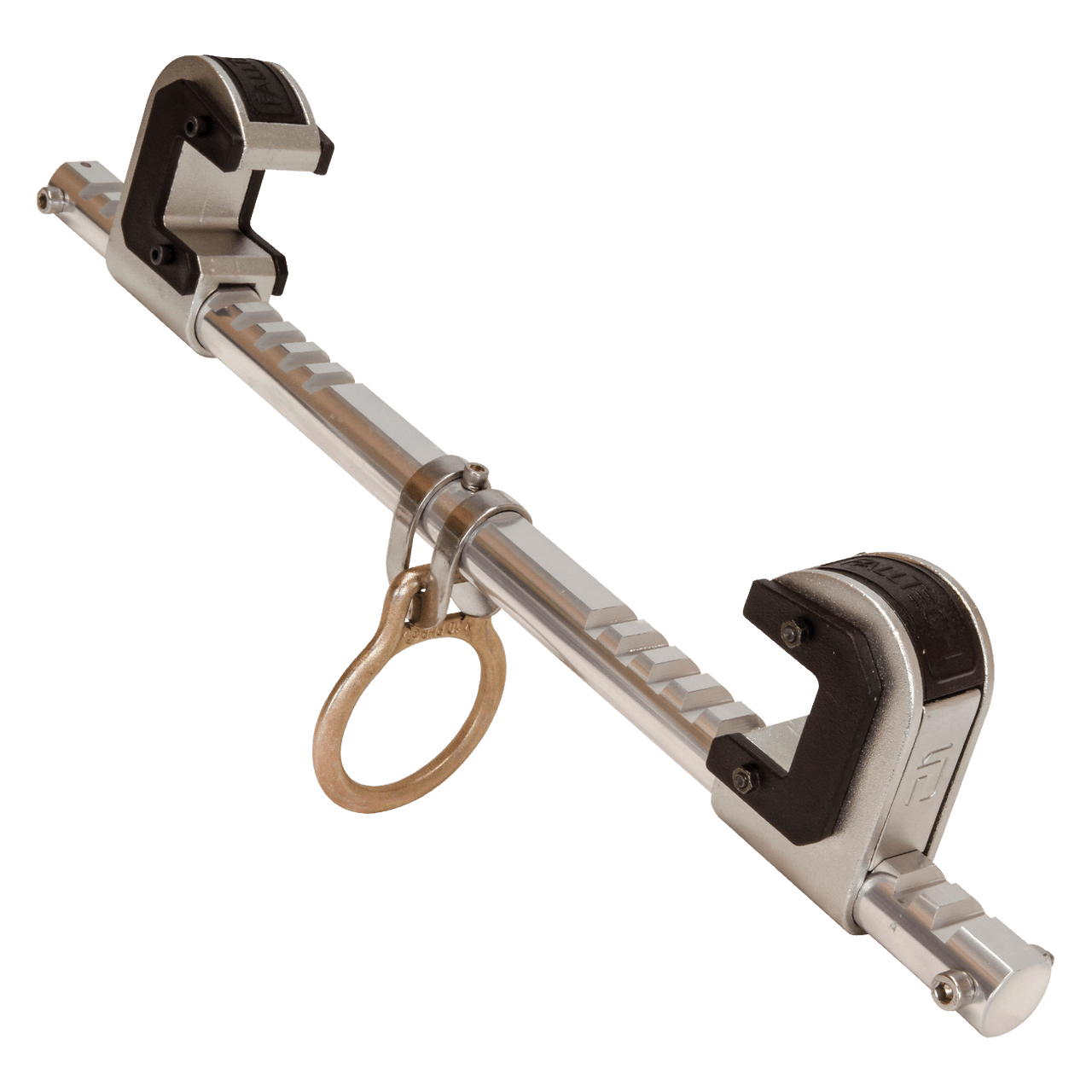

14" Trailing Beam Anchor with Dual-clamp Adjustment (7530)
Regular price
$294.71
Unit price
/
Unavailable
Features
- Features aluminum crossbar and steel clamping jaws with nylon slider pads
- Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick.
- Dual adjusting jaws include concealed locking latches
- Alloy steel D-ring remains centered on crossbar
- For temporary mobile use on horizontal I-beams
- Complies with ANSI Z359.18-2017
Material Specifications
- D-ring: Plated alloy steel; 5,000 lb min. static strength
- Crossbar: Aluminum alloy
- Clamp Jaws: Plated alloy steel
Performance Specifications
-
Static Strength: 5,000 lb min.
-
ANSI User Capacity: 130 to 310 lb max.
-
OSHA User Capacity: 130 to 425 lb max.
Compliant With
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
