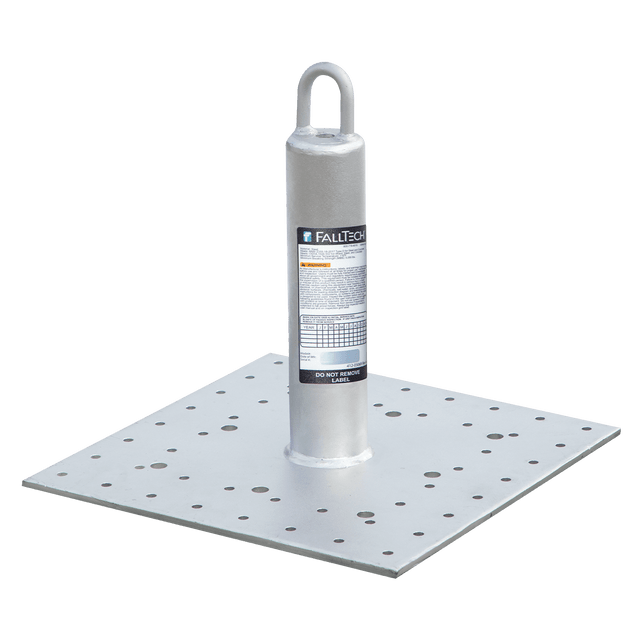

12" Post Anchor with Welded-eye for Wood, Concrete and Steel (78012WCSWE)

Features

• Features fixed-position welded-eye connection for user's preferred fall arrest components
• Welded galvanized steel post and plate construction.
• 16" x 16" x 1/2" base plate provides durable permanent installation to wood, concrete and steel structures
• Available in 12" and 18" post heights to elevate user's connections above the walking/working surface
• Features 1-1/4" x 2" welded eye
• Requires user-supplied fasteners for installation
• Complies with ANSI Z359.18-2017


Material Specifications

• Post Anchor: Galvanized carbon steel

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
